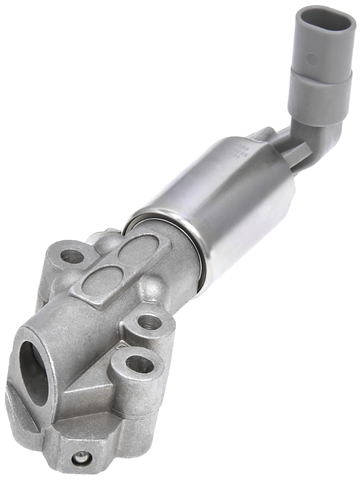

Gates VVS270 right VVT solenoid for the 2010 Hyundai Genesis Coupe V6 3.8L and other vehicles is an electromagnetic valve in the engine's variable valve timing system. Commonly called an oil control valve, this variable valve timing solenoid is tested to help restore engine performance.
- Continuously controls oil flow for precise timing
- Electromagnetic activation on a 12 V circuit
- Housing made of steel and aluminum
- One female connector with two male blade terminals
Quick facts
- Part: Gates VVS270 VVT solenoid
- Also called: variable valve timing solenoid
- Fits: 2010 Hyundai Genesis Coupe V6 3.8L and other vehicles
- Position: Exhaust (right)
- Material: Steel, aluminum housing
- Condition: New
A worn or failing VVT solenoid can show up as a rough idle, lower fuel economy or a check engine light, though other faults can do the same. Before you replace it, look over the connector and wiring harness with the engine off for damage or oil seepage.
Fits
This is a direct-fit replacement for the 2010 Hyundai Genesis Coupe V6 3.8L, the 2009-2010 Kia Borrego V6 3.8L and the 2009 Hyundai Genesis V6 3.8L, built to OE specifications in fit, form and performance.
Specifications
Fit and size
- Position: Exhaust (right)
- Quantity per vehicle: 1
- Overall height: 30 mm (1.183 in)
- Housing length: 148 mm (5.824 in)
- Housing width: 30 mm (1.183 in)
Build and materials
- Type: VVT solenoid, electromagnetic activation
- Housing material: steel, aluminum
- Voltage: 12 V
- Connector: 1 female connector, 2 male blade terminals
- Condition: New
- Country of origin: China
In the box
One VVT solenoid for the right side. The right side takes one, and the left side is a separate part ordered on its own. Mounting hardware and a seal are not included, so plan on getting new ones.
Interchange: 916-710
243603C820 · VTS1192 · VVT332
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
916-710, 243603C820, VVS270, VTS1192, VVT332
Frequently Asked Questions
Does the Gates VVS270 fit the 2009-2010 Kia Borrego V6 3.8L?
Yes. The Gates VVS270 is a right-side (exhaust) VVT solenoid that fits the 2009-2010 Kia Borrego V6 3.8L.
Does the VVS270 come with a seal or mounting hardware?
No. The Gates VVS270 listing contains the solenoid only. The seal and mounting hardware are not included.
What voltage and connector does this VVT solenoid use?
It is a 12 V electromagnetic solenoid with one female connector and two male blade terminals.
Can a rough idle come from a bad right-side VVT solenoid?
It can, if the solenoid is the cause. Lower fuel economy or a check engine light can also show up, and other faults produce the same signs, so a shop can test it.
Is VTS1192 the same part as the Gates VVS270?
VTS1192 is listed as an interchange number for the Gates VVS270, so this solenoid replaces it. 916-710, 243603C820 and VVT332 are listed as well.
