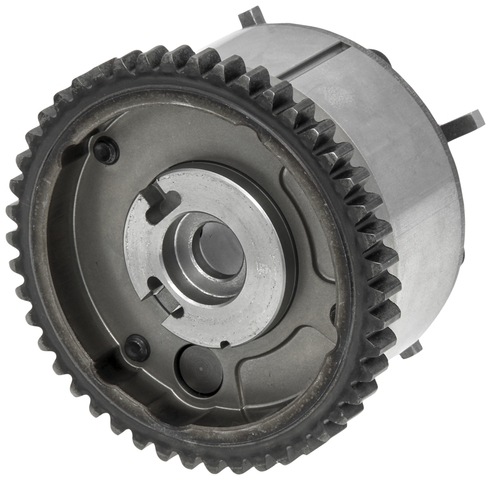

Gates VCP816 left VVT sprocket for the 2008-2010 Infiniti M45 V8 4.5L and other vehicles rotates to advance or retard valve timing. Commonly called a cam phaser or cam actuator, it is also listed as an engine variable valve timing VVT sprocket.
- Single-row timing chain drive
- 46 teeth with tooth profiles matched for quiet operation
- Steel construction
- 3.57 in outside diameter and 2.405 in height
Quick facts
- Part: Gates VCP816 VVT sprocket
- Also called: engine variable valve timing VVT sprocket
- Fits: the 2008-2010 Infiniti M45 V8 4.5L and other vehicles
- Position: Left bank
- Material: Steel
- Condition: New
A worn or failing VVT sprocket can show up as a rattle at startup, a rough idle or a check engine light. A VVT solenoid, a low oil level or a stretched timing chain may be behind those signs too, so find the cause before you buy. The left bank takes one sprocket, and the right bank's sprocket is ordered separately.
Fits
It is a direct-fit replacement for the 2008-2010 Infiniti M45 V8 4.5L and the 2008 Infiniti FX45 V8 4.5L, designed to OE specifications in fit, form and performance.
Specifications
Fit and size
- Position: left bank
- Quantity per application: 1
- Outside diameter: 3.57 in
- Height: 2.405 in
- Tooth thickness: 0.328 in
- Tooth quantity: 46
- Mounting hole quantity: 1
Build and materials
- Material: steel
- Drive type: timing chain, 1 chain row
- Condition: new
- Country of origin: United States
In the box
One VVT sprocket. Mounting hardware is not included, so plan on new bolts.
Interchange: 916-530
VV5044 · 13025AR00B · VVT544
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
VV5044, 13025AR00B, 916-530, VVT544
Frequently Asked Questions
Does the Gates VCP816 fit the 2008-2010 Infiniti M45 V8 4.5L?
Yes. Gates VCP816 is the left bank VVT sprocket for the 2008-2010 Infiniti M45 V8 4.5L, and the 2008 Infiniti FX45 V8 4.5L takes it too.
Do mounting bolts come with this left VVT sprocket?
No. The box holds one sprocket and no mounting hardware, so plan on new bolts for the job.
How many teeth does this Gates VVT sprocket have?
Gates VCP816 has 46 teeth and runs on a single-row timing chain. It is steel with a 3.57 in outside diameter.
Which bank does this VVT sprocket go on?
This one is for the left bank, and the listing is one sprocket. The right bank takes its own separate part.
Is 13025AR00B the same part as the Gates VCP816?
Yes. 13025AR00B is on the interchange list for Gates VCP816, along with 916-530, VV5044 and VVT544.
