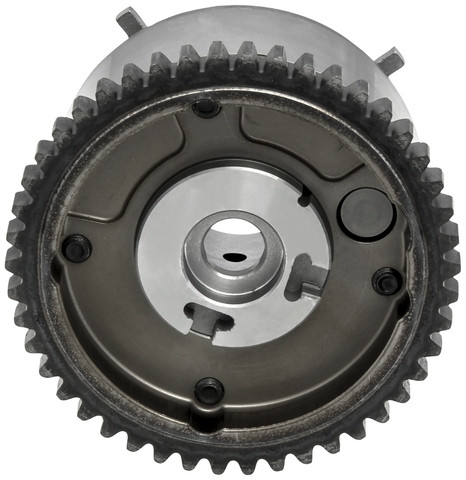

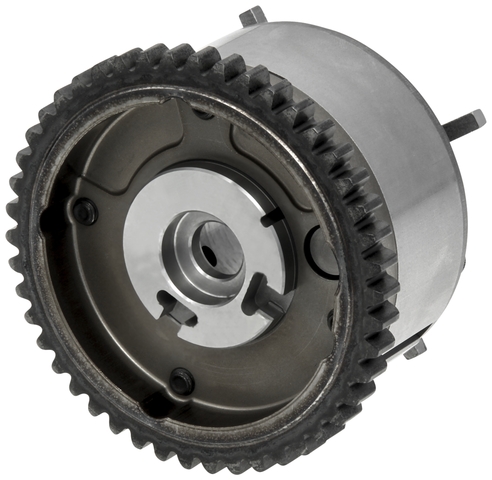

Gates VCP820 left VVT sprocket for the 2008-2012 Nissan Pathfinder V8 5.6L and other vehicles rotates to advance or retard valve timing. Commonly called a cam phaser or an engine variable valve timing VVT sprocket, it is designed to OE specifications.
- Steel construction for durability and service life
- Matched tooth profiles, 46 teeth, for quiet operation
- Single-row timing chain drive
- Tested to help restore engine performance, fuel economy and power, and to reduce emissions
Quick facts
- Part: Gates VCP820 VVT sprocket
- Also called: engine variable valve timing VVT sprocket
- Fits: 2008-2012 Nissan Pathfinder V8 5.6L and other vehicles
- Position: Left bank, intake (left)
- Material: Steel
- Condition: New
A worn VVT sprocket can show up as a rough idle, a rattle from the timing area or a check engine light. A VVT solenoid, low or dirty engine oil, or a stretched timing chain can be behind these signs too, so find the cause before you buy.
Fits
This left VVT sprocket is a direct-fit replacement for the 2008-2012 Nissan Pathfinder V8 5.6L, the 2012-2016 Nissan NV2500 V8 5.6L and the 2012-2016 Nissan NV3500 V8 5.6L. This side takes one; the other bank is ordered separately. If your vehicle is not named here, open the "Vehicles it fits" section and check your exact model and engine.
Specifications
Fit and size
- Position: Left bank, intake (left)
- Quantity per application: 1
- Outside diameter: 3.565 in
- Height: 2.409 in
- Tooth thickness: 0.328 in
- Tooth quantity: 46
- Mounting hole quantity: 1
- Drive type: timing chain, 1 chain row
Build and materials
- Material: Steel
- Grade type: OE Exact
- Condition: New
- Country of origin: United States
In the box
One VVT sprocket. Mounting hardware is not included, so plan on new bolts, since the old ones may not be reusable.
Interchange: VV5036 · 13025ZE00B · VVT536
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
VV5036, 13025ZE00B, VVT536
Frequently Asked Questions
Does the Gates VCP820 VVT sprocket fit a 2012-2016 Nissan NV2500 V8 5.6L?
Yes, the Gates VCP820 fits the 2012-2016 Nissan NV2500 V8 5.6L. For any other model, open the "Vehicles it fits" section to check your year and engine.
Does the VCP820 VVT sprocket come with new bolts?
No, this listing is one left bank intake sprocket without mounting hardware, so buy the bolts separately and plan on new ones, since the old bolts may not be reusable.
How many teeth does the Gates VCP820 have, and what drives it?
The Gates VCP820 has 46 teeth and runs a single-row timing chain. Its outside diameter is 3.565 in and it is made of steel.
Can a failing left bank VVT sprocket cause a rough idle?
Yes, it can; a worn VVT sprocket can also show up as a rattle from the timing area or a check engine light. A shop can scan the codes and test the VVT system.
Does the Gates VCP820 replace 13025ZE00B?
Yes, 13025ZE00B is on the interchange list for this Gates VCP820 VVT sprocket, along with VV5036 and VVT536.
