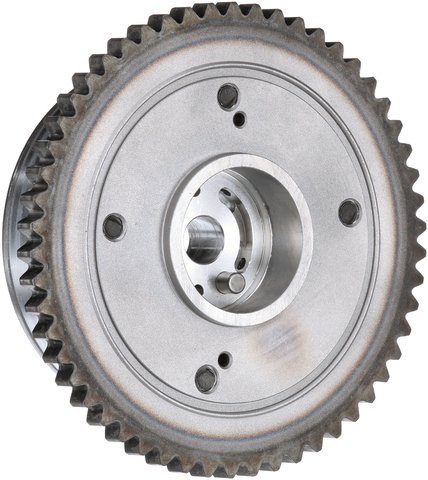

Gates VCP856 VVT sprocket for the 2014-2016 Hyundai Elantra 4-cylinder 1.8L rotates its position to advance or retard the intake valve timing. It is also sold as an engine variable valve timing vvt sprocket and is commonly called a cam phaser or cam actuator.
- Rotates the sprocket position to advance or retard valve timing
- Matched tooth profiles for quiet operation
- Aluminum and steel construction
- 54 teeth, set up for a single-row timing chain
Quick facts
- Part: Gates VCP856 VVT sprocket
- Also called: engine variable valve timing vvt sprocket
- Fits: 2014-2016 Hyundai Elantra 4-cylinder 1.8L
- Position: Intake
- Material: Aluminum, steel
- Condition: New
A worn VVT sprocket can show up as a rough idle, a check engine light or a rattle near the timing chain. These signs alone do not prove the sprocket is at fault, since a stretched timing chain produces similar symptoms. This listing is one sprocket, and the 1.8L takes one on the intake side.
Fits
It is a direct-fit replacement for the 2014-2016 Hyundai Elantra 4-cylinder 1.8L (L4-1.8L), built to OE specifications in fit, form and performance.
Specifications
Fit and size
- Position: Intake
- Quantity per vehicle: 1
- Outside diameter: 4.11 in
- Height: 1.45 in
- Tooth thickness: 0.258 in
- Tooth quantity: 54
- Mounting hole quantity: 1
- Chain row quantity: 1
Build and materials
- Drive type: Timing chain
- Material: Aluminum, steel
- Grade: OE Performance
- Condition: New
- Country of origin: China
In the box
One VVT sprocket. Mounting hardware is not included, so plan on new bolts, as the old ones may not be reusable.
Installation notes
- Direct replacement design for an exact fit and easy installation.
Interchange: VV5222 · ECP1919 · 243502E011 · VVT717
This part cross-references / interchanges with the following part numbers:
VV5222, ECP1919, 243502E011, VCP856, VVT717
Frequently Asked Questions
Is the Gates VCP856 VVT sprocket the right one for a 2014-2016 Hyundai Elantra 4-cylinder 1.8L?
Yes. Gates VCP856 is listed for the 2014-2016 Hyundai Elantra with the 1.8L four-cylinder engine (L4-1.8L), and that engine takes one.
Does the VCP856 VVT sprocket come with mounting bolts?
No. Gates VCP856 comes as one VVT sprocket with no mounting hardware, so order new bolts separately.
How many teeth does this VVT sprocket have, and what drive does it use?
This sprocket has 54 teeth and a 4.11 in outside diameter. It is made for a single-row timing chain drive.
How can I tell if a VVT sprocket is going bad?
Common signs include a rough idle, a check engine light or a rattle near the timing chain. A shop can test the valve timing system to confirm the cause.
Does Gates VCP856 replace Hyundai part 243502E011?
Yes. 243502E011 is listed as an interchange number for Gates VCP856, along with VV5222, ECP1919 and VVT717.
