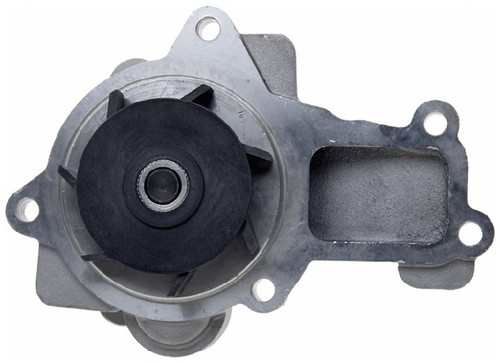

Gates 41198 water pump for the 2005-2008 Chrysler Pacifica V6 3.8L circulates coolant through the engine to carry heat away from it. It is a new pump that fits and performs to OE specifications and requirements.
- Cast aluminum housing with a plastic impeller
- 100 percent functional test of the seals and bearings
- 100 percent leakage test of the casting and the fully assembled pump
- Accessory belt drive with standard impeller rotation
Quick facts
- Part: Gates 41198 water pump
- Also called: engine water pump
- Fits: 2005-2008 Chrysler Pacifica V6 3.8L
- Material: Cast aluminum housing, plastic impeller
- Condition: New
A coolant leak at the pump, a whining or grinding noise from the bearing, or overheating can mean an engine water pump is worn, though the thermostat or the drive belt can be behind the overheating, so find the cause before you replace anything.
Fits
As a water pump replacement for the 2005-2008 Chrysler Pacifica V6 3.8L, this pump is a direct-fit part. The 2005-2008 Chrysler Pacifica V6 3.8L takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Drive type: accessory belt
- Timing belt driven: No
Build and materials
- Housing material: cast aluminum
- Impeller material: plastic
- Impeller rotation: standard
- Condition: new
- Warranty: Gates limited lifetime warranty
- Country of origin: China
In the box
One water pump and one gasket. The pulley, fan clutch, thermostat and housing, and back housing are not included.
Interchange: 252-937 · WP-2330 · AWP-2330 · 18-1948 · 2-20980 · 120-4440
AW6651 · 20980 · 5533148 · 58651 · T1178 · W2330M · 4648952AB · 4648952AC · 4648952AD · DP1379 · CP4123 · CP6651 · 941198
This part cross-references / interchanges with the following part numbers:
252-937, WP-2330, AW6651, 20980, 5533148, 58651, T1178, W2330M, 4648952AB, 4648952AC, 4648952AD, DP1379, AWP-2330, 18-1948, 2-20980, 120-4440, CP4123, CP6651, 41198, 941198
Frequently Asked Questions
Is the Gates 41198 the right water pump for the 2005-2008 Chrysler Pacifica V6 3.8L?
Yes. The Gates 41198 water pump fits the 2005-2008 Chrysler Pacifica V6 3.8L, which takes one pump.
Does the Gates 41198 water pump come with a gasket?
Yes, it comes with one gasket. The pulley, fan clutch, thermostat and housing, and back housing are not included.
Is the housing on this water pump aluminum or plastic?
The housing is cast aluminum, and the impeller is plastic.
Can a whining noise from the front of the engine mean the water pump bearing is wearing?
Yes, it can. A coolant leak at the pump or overheating can also point to a worn pump. Have it checked promptly rather than driving on it.
Are these Gates water pumps leak tested?
Yes. The seals and bearings get a 100 percent functional test, and the casting and the assembled pump get a 100 percent leakage test.
