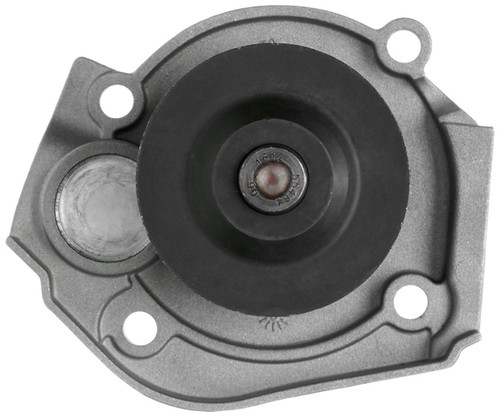

Gates 41203 water pump for the 2018-2020 Fiat 124 Spider 4-cylinder 1.4L and other vehicles circulates coolant through the engine's cooling system. Its impeller moves the coolant, and this is a new pump sold individually.
- 100 percent functional test of the seals and bearings
- 100 percent leakage test of the casting and of the fully assembled water pump
- Cast aluminum housing with a plastic impeller
- Timing belt driven, with the pulley included
Quick facts
- Part: Gates 41203 water pump
- Also called: engine water pump
- Fits: 2018-2020 Fiat 124 Spider 4-cylinder 1.4L and other vehicles
- Position: Main
- Material: Cast aluminum housing, plastic impeller
- Condition: New
A coolant leak at the pump, a whine or grind from the belt area, or a temperature gauge that climbs can mean the engine water pump is wearing out. Those signs also come from other cooling parts, so find the cause before replacing the pump: with the engine off and cool, look around it for dried coolant residue.
Fits
The 2012-2019 Fiat 500 4-cylinder 1.4L and the 2014-2019 Fiat 500L 4-cylinder 1.4L are covered too, one pump per car, and so are other vehicles. The pump fits and performs to OE specifications and requirements. Owners of other cars can find theirs in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Main
- Quantity per vehicle: 1
- Drive type: timing belt
- Impeller rotation: standard
Build and materials
- Housing material: cast aluminum
- Impeller material: plastic
- Condition: new
- Warranty: Gates limited lifetime warranty
- Country of origin: China
In the box
One water pump with its pulley. The back housing, the thermostat and housing, and the fan clutch are not included.
Interchange: 120-4480
55221397 · T1655 · W2159M · 4892713AA · 4892713AB · 4892713AC · 4893386AA · 68291856AA · 68291913AA · 68313815AA · 68385387AA · RL892713AB · RL893386AA · S319 · S320 · DP1746 · US8136 · QPW78 · CP6813 · WPR0013 · 941203
This part cross-references / interchanges with the following part numbers:
55221397, T1655, W2159M, 4892713AA, 4892713AB, 4892713AC, 4893386AA, 68291856AA, 68291913AA, 68313815AA, 68385387AA, RL892713AB, RL893386AA, S319, S320, DP1746, US8136, 120-4480, QPW78, CP6813, 41203, WPR0013, 941203
Frequently Asked Questions
Does the Gates 41203 water pump fit the 2018-2020 Fiat 124 Spider 4-cylinder 1.4L?
Yes. Gates 41203 is listed for the 2018-2020 Fiat 124 Spider 4-cylinder 1.4L, and the car takes one pump.
Does this timing belt driven water pump come with the pulley and thermostat housing?
Yes for the pulley: this water pump includes it. The thermostat and housing, the back housing and the fan clutch are not included.
What is the impeller on the Gates 41203 made of?
The impeller is plastic and the housing is cast aluminum. Gates 41203 is a new part with standard impeller rotation.
Can coolant seeping near the water pump mean the pump is failing?
Yes, it can. Coolant seepage, a whine or grind from the pump area, or a climbing temperature gauge can all mean a worn pump. A shop can pressure-test the system.
How is the Gates 41203 water pump tested?
Every Gates 41203 gets a 100 percent functional test of its seals and bearings, plus a 100 percent leakage test of the casting and the assembled pump.
