Gates 41212 water pump for the 2007-2014 Volvo XC90 6-cylinder 3.2L and other vehicles circulates coolant through the engine to carry heat away from it. This new pump is driven by the accessory belt, not the timing belt.
- Functional test of the seals and bearings on every pump, at 100 percent
- Leakage test of the casting and of the fully assembled pump, at 100 percent

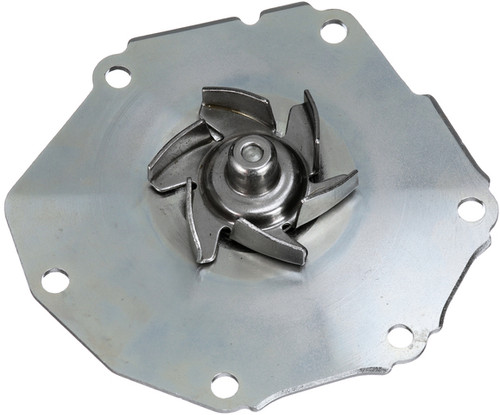

- Stamped steel housing and stamped steel impeller
- Reverse impeller rotation
Quick facts
- Part: Gates 41212 water pump
- Also called: engine water pump
- Fits: the 2007-2014 Volvo XC90 6-cylinder 3.2L and other vehicles
- Material: Stamped steel
- Condition: New
A coolant leak at the pump, a whine or grinding from its bearing, or an engine that runs hot can mean the pump is wearing out. With the engine off and cool, look around it for coolant stains or crusty residue. Find the cause before replacing anything; if the pump is the cause, this one replaces it. The engine takes a single pump.
Fits
The pump is listed for a wide range of Volvo and Land Rover models, including the 2008-2012 Land Rover LR2 6-cylinder 3.2L, the 2010 Volvo XC60 6-cylinder 3.0L and the 2010-2011 XC60 6-cylinder 3.2L. It fits and performs to OE specifications and requirements.
Specifications
Fit and size
- Quantity per vehicle: 1
- Drive type: accessory belt
- Timing belt driven: No
- Impeller rotation: reverse
Build and materials
- Housing material: stamped steel
- Impeller material: stamped steel
- Condition: new
- Warranty: Gates limited lifetime warranty
- Country of origin: China
In the box

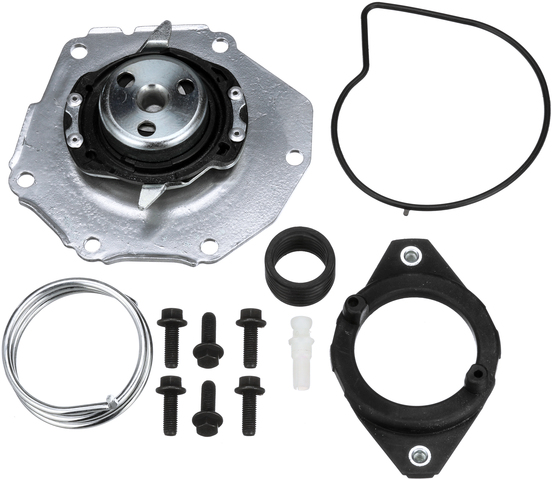

One water pump, one seal, one plastic fitting and 6 bolts. The pulley, fan clutch, back housing and thermostat housing are not included.
Interchange: AWP-2463 · 196-1030
7G9N 8501 DA · T1275 · W2463M · V212 · CP6288 · LR003204 · LR006861 · 30777524 · 31219000 · 941212
This part cross-references / interchanges with the following part numbers:
T1275, W2463M, V212, AWP-2463, 196-1030, CP6288, 7G9N 8501 DA, LR003204, LR006861, 41212, 30777524, 31219000, 941212
Frequently Asked Questions
Is this Gates 41212 water pump right for the 2007-2014 Volvo XC90 6-cylinder 3.2L?
Yes, Gates 41212 is listed for the 2007-2014 Volvo XC90 6-cylinder 3.2L, along with other vehicles. If your car is a different one, look it up in the "Vehicles it fits" section on this page.
Does this engine water pump come with a seal and bolts?
Yes, it comes with a seal, a plastic fitting and 6 bolts. The pulley, fan clutch, back housing and thermostat housing are not included.
What are the housing and impeller of the Gates 41212 made of?
On Gates 41212 the housing and the impeller are both stamped steel, and the impeller turns in reverse rotation. The pump is driven by the accessory belt.
How can I tell if my water pump bearing is going bad?
A whine or grinding from the pump, or coolant dripping near it, can point to a worn bearing or seal. With the engine off and cool, look for stains or residue around the pump; a shop can test it further.
Does Gates cover the 41212 water pump with a warranty?
Yes, Gates backs the 41212 water pump with a limited lifetime warranty.
