Gates 43568 water pump for the 2016-2023 Toyota Tacoma V6 3.5L circulates coolant through the engine to carry heat away. This Gates water pump is a new part driven by the accessory belt.
- 100 percent functional test of the seals and bearings
- 100 percent leakage test of the casting and the fully assembled water pump
- Cast aluminum housing with a stamped steel impeller
Quick facts
- Part: Gates 43568 water pump
- Also called: engine water pump
- Fits: 2016-2023 Toyota Tacoma V6 3.5L
- Material: cast aluminum housing, stamped steel impeller
- Condition: New
Coolant seeping from the pump, a whining or grinding noise from the bearing, or an engine that runs hot can mean the pump is wearing out. A leaking radiator or hose, a sticking thermostat or a weak radiator cap can be behind those signs too, so find the cause before buying a pump.
Fits
This water pump is a direct-fit replacement for the 2016-2023 Toyota Tacoma V6 3.5L and is built to fit and perform to OE specifications. The 2016-2023 Toyota Tacoma V6 3.5L takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Drive type: accessory belt
Build and materials
- Housing material: cast aluminum
- Impeller material: stamped steel
- Impeller rotation: reverse
- Condition: new
- Warranty: Gates limited lifetime warranty
- Country of origin: China
In the box

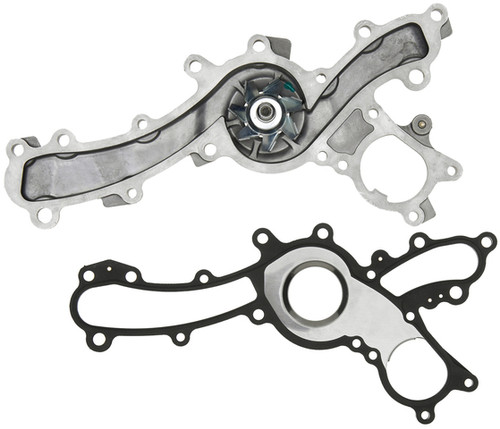

One water pump and one gasket. The thermostat and housing, pulley, fan clutch and back housing are not included.
Interchange: 170-3040
WPT809 · US8172 · 1610009720 · 943568
This part cross-references / interchanges with the following part numbers:
WPT809, US8172, 170-3040, 43568, 1610009720, 943568
Frequently Asked Questions
Is the Gates 43568 a Toyota Tacoma water pump for the 2016-2023 model years with the V6 3.5L?
Yes. Gates 43568 fits the 2016-2023 Toyota Tacoma V6 3.5L, and the truck takes one pump.
Does this engine water pump come with a gasket?
Yes. The Gates 43568 comes with one water pump and one gasket. The thermostat and housing, pulley, fan clutch and back housing are not included.
Is the Gates pump driven by the timing belt?
No. This water pump runs on the accessory belt and is not timing-belt driven.
What are the housing and impeller made of on this water pump?
The housing is cast aluminum and the impeller is stamped steel.
Does the Gates 43568 have a warranty?
Yes. Gates backs the 43568 water pump with a limited lifetime warranty.
