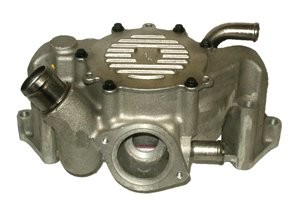

Gates 44036 water pump for the 1993-1996 Chevrolet Corvette V8 5.7L circulates coolant through the engine to carry heat away from it.
- 100 percent functional test of the seals and bearings
- 100 percent leakage test of the casting and the fully assembled pump
- Cast aluminum housing and stamped steel impeller
- Reverse-rotation impeller driven by the accessory belt
Quick facts
- Part: Gates 44036 water pump
- Also called: engine water pump
- Fits: 1993-1996 Chevrolet Corvette V8 5.7L
- Material: Cast aluminum housing, stamped steel impeller
- Condition: New
A coolant leak at the pump, a whine or grinding from the pump area, or an engine that runs hot can mean the water pump is worn, though a thermostat or the radiator cap can be behind overheating as well.
Fits
The 1993-1996 Chevrolet Corvette V8 5.7L takes one of these pumps, and the fit and performance follow OE specifications.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outlets: 3
- Drive type: Accessory belt, not timing belt driven
- Impeller rotation: Reverse
Build and materials
- Housing material: Cast aluminum
- Impeller material: Stamped steel
- Condition: New
- Warranty: Gates limited lifetime warranty
- Country of origin: China
In the box
One water pump, two gaskets and a seal. The pulley, fan clutch, thermostat and housing, and back housing are not included.
Interchange: 251-554 · 252-699 · WP-9001 · P-936 · 51-1796 · DWP-9001 · 18-1119 · 4-9001 · 130-6074 · 55-5066
AW5066 · 20308 · 99150 · 5513816 · T5078 · W9001M · DP847 · 12518278 · 12523499 · 12527739 · 411070 · CP5066 · PWP9001 · FP2273 · US5066 · 944036
This part cross-references / interchanges with the following part numbers:
251-554, 252-699, WP-9001, AW5066, 20308, P-936, 99150, 5513816, 51-1796, T5078, W9001M, DP847, DWP-9001, 18-1119, 4-9001, 130-6074, 12518278, 12523499, 12527739, 411070, CP5066, 44036, 55-5066, PWP9001, FP2273, US5066, 944036
Frequently Asked Questions
Does the Gates 44036 work as a water pump for the 1993-1996 Chevrolet Corvette V8 5.7L?
Yes. Gates 44036 is listed for the 1993-1996 Chevrolet Corvette V8 5.7L, and that engine takes one pump.
Does the Gates 44036 come with gaskets and a seal?
Yes. The Gates 44036 includes the water pump, two gaskets and a seal, but not the pulley, fan clutch, thermostat and housing, or back housing.
Is this engine water pump driven by the accessory belt or the timing belt?
This pump is driven by the accessory belt, not the timing belt. The housing is cast aluminum and the impeller is stamped steel.
Could a coolant leak at the pump mean the water pump seal is worn?
Yes, it can, since a worn seal lets coolant out at the pump. Whining or grinding from the pump can also mean worn bearings, and a shop can test the cooling system.
Is the Gates 44036 covered by a warranty?
Yes. Gates backs the 44036 water pump with a limited lifetime warranty.
