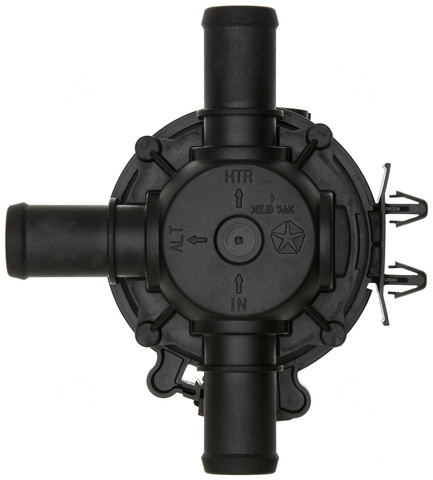

Gates EHV117 heater control valve for the 2013-2018 Ram 1500 and other vehicles adjusts coolant flow through the heater core. This Gates heater control valve is electric and helps control the temperature setting in the passenger compartment.
- ThermalPro electric coolant control valve with a male connector
- Plastic outlets made of 100 percent virgin resins
- Steel metal components where needed to resist corrosion
- Rigorous 100% performance testing
Quick facts
- Part: Gates EHV117 heater control valve
- Also called: HVAC heater control valve
- Fits: 2013-2018 Ram 1500 and other vehicles
- Material: Plastic, Steel
- Condition: New
Cabin air that ignores the temperature setting, or dampness around the valve, can point to a failing valve, though other parts can give similar signs. Before replacing it, look over the valve body, its ports and the connector for cracks, wetness or damage with the engine off and cool. A shop can test the electric valve itself.
Fits
The vehicles it fits include the 2013-2018 Ram 1500, the 2013-2015 Ram 2500 and the 2019 Ram 1500 Classic. The 2013-2018 Ram 1500 takes one. The design is OE exact and application-specific, and 3D model imaging during the design phase supports a precise OE fit. If your vehicle is not named here, look for it in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet port outside diameter: 20 mm (.782 in)
- Outlet port outside diameter: 20 mm (.782 in)
- Connector gender: male
Build and materials
- Type: electric coolant control valve
- Material: plastic, steel
- Grade: OE exact
- Condition: New
- Country of origin: China
In the box
One heater control valve, with mounting brackets and hardware included as required.
Interchange: 52014892AB · 52014892AC · 74916
This part cross-references / interchanges with the following part numbers:
52014892AB, 52014892AC, 74916, EHV117
Frequently Asked Questions
Is the Gates EHV117 a 2014 Ram 1500 heater control valve?
Yes. Gates EHV117 fits the 2013-2018 Ram 1500, so the 2014 model year is covered.
Is the Gates EHV117 a Ram 2500 heater control valve for the 2013-2015 model years?
Yes. Gates EHV117 fits the 2013-2015 Ram 2500, which takes one.
Is this HVAC heater control valve electric?

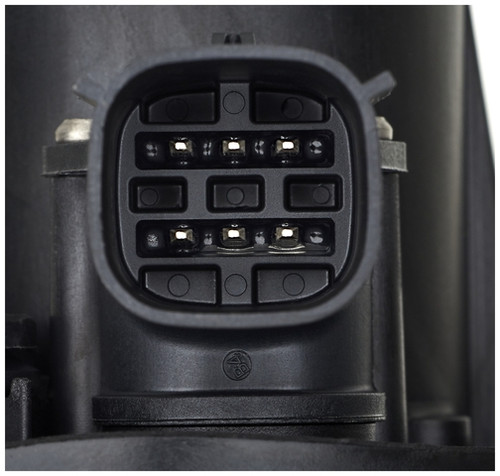

Yes. This valve is a ThermalPro electric coolant control valve with a male connector, and it adjusts coolant flow through the heater core.
Does the Gates EHV117 come with mounting brackets?
The listing is a single valve. Mounting brackets and hardware are included as the application requires.
What size are the ports on the Gates EHV117?
The inlet and outlet ports each measure 20 mm (.782 in) in outside diameter.
