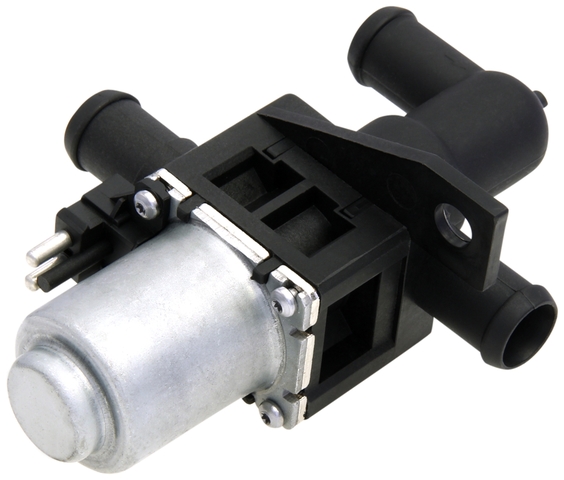

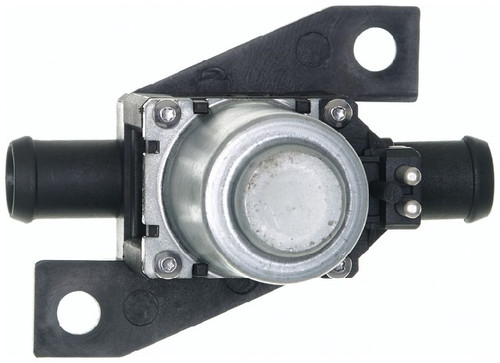

Gates EHV118 front heater control valve for the 2003-2006 Dodge Sprinter 2500 and other vehicles is an electric valve that controls coolant flow through the heater core. Also called an HVAC heater control valve, it helps set the cabin temperature you select.
- ThermalPro electric coolant control valve
- 3D model imaging in the design phase for a precise fit
- Plastic outlets made of 100 percent virgin resins
- Steel metal components where needed to resist corrosion
- Rigorous 100% performance testing
Quick facts
- Part: Gates EHV118 heater control valve
- Also called: HVAC heater control valve
- Fits: 2003-2006 Dodge Sprinter 2500 and other vehicles
- Position: Front
- Material: Plastic, Steel
- Condition: New
Cabin heat that does not follow the temperature setting, or coolant seepage around the valve, can mean the valve is wearing out. Before you replace it, rule out a low coolant level (checked only with the engine cool), a restricted heater core and a damaged connector.
Fits
The 2003-2006 Dodge Sprinter 2500, the 2003-2006 Dodge Sprinter 3500 and the 2002-2006 Freightliner Sprinter 2500 take this valve, and it fits more besides. It is an OE exact, application-specific design.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 1
- Inlet port outside diameter: 18 mm (0.71 in)
- Outlet port outside diameter: 18 mm (0.71 in)
- Connector gender: Male
Build and materials
- Type: Electric coolant valve
- Material: Plastic, Steel
- Grade: OE Exact
- Condition: New
- Country of origin: China
In the box
One heater control valve, with mounting brackets and hardware as required. This listing holds one valve, and the vehicle takes one.
Interchange: 5103770AA · 74919 · 0018300684
This part cross-references / interchanges with the following part numbers:
5103770AA, 74919, 0018300684, EHV118
Frequently Asked Questions
Does the Gates EHV118 fit the 2003-2006 Dodge Sprinter 3500?
Yes, Gates EHV118 fits the 2003-2006 Dodge Sprinter 3500. If your van is not named on this page, look it up in the "Vehicles it fits" section to see whether it is covered.
Does the Gates heater control valve come with mounting hardware?
Gates EHV118 comes with mounting brackets and hardware as required for the application. The listing is one electric heater control valve.
What size are the ports on the EHV118?
Both the inlet and the outlet port on the Gates EHV118 measure 18 mm (0.71 in) in outside diameter.
What are the signs of a failing electric heater control valve?
Cabin heat that ignores the temperature setting, or coolant seepage at the valve, can point to a worn valve. Look for leaks only with the engine off and cool; a shop can test the electric valve.
Is the Gates EHV118 made of plastic or metal?
It uses both: the outlets are plastic made of 100 percent virgin resins, and the metal components are steel where needed to resist corrosion.
