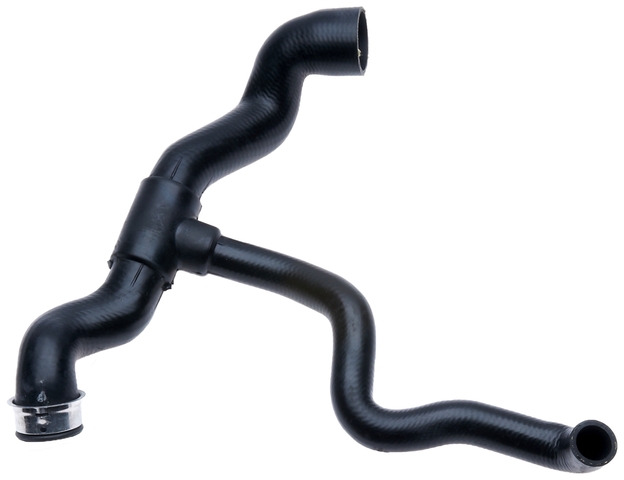

Gates 23750 lower radiator coolant hose for the 2001-2005 Mercedes-Benz C240 V6 2.6L and other vehicles carries coolant between the engine and the radiator. The Gates coolant hose is a molded modular assembly with an integrated branch and a male quick connector.
- Gates Modular Coolant Hose assembly made for a specific application, with a branch and a male quick connector built in
- Materials engineered to resist collapse under vacuum
- Engineered to resist electrochemical degradation, the leading cause of hose failure
- EPDM tube with synthetic fiber knit reinforcement and a heat-, ozone- and chemical coolant-resistant EPDM cover
- Meets SAE 20R3 EC Class D1 under 25 mm (1 in.) ID and SAE 20R4 EC Class D1 at 25 mm (1 in.) ID and over
Quick facts
- Part: Gates 23750 radiator coolant hose
- Fits: 2001-2005 Mercedes-Benz C240 V6 2.6L and other vehicles
- Position: Lower
- Material: EPDM, plastic, steel
A hose that leaks, or shows cracks or swelling when you look at it with the engine off and cool, may be due for replacement. A leaking radiator, a worn water pump or a failing thermostat can also be behind coolant loss or overheating, so find the cause before buying a hose.
Fits
This hose fits the 2001-2005 Mercedes-Benz C240 V6 2.6L and the 2001-2005 Mercedes-Benz C320 V6 3.2L.
Specifications
Fit and size
- Position: Lower
- Quantity per vehicle: 1
- End 1 inside diameter: 1.25 in (32 mm)
- End 2 inside diameter: 1.5 in (38 mm)
- End 3 inside diameter: 0.80 in
- Centerline length: 16 in (406 mm)
- Branch quantity: 1
- Quick connect fitting quantity: 1
Build and materials
- Material: EPDM, plastic, steel
- Construction: molded, modular
- Modular components: branch, male quick connector
- Temperature range: -40°F to +257°F (-40°C to +125°C)
- Country of origin: Turkey
In the box
One lower radiator coolant hose with its branch and male quick connector. The listing holds a single hose, and the lower position on these cars takes one.
Installation notes
- Replace the clamps each time a new coolant hose is installed.
- Not for fuel or oil transfer applications.
Interchange: 22695M · 67207 · 72710 · E72710 · 2035011182 · 16438 · R28189 · CHR0104R
This part cross-references / interchanges with the following part numbers:
22695M, 23750, 67207, 72710, E72710, 2035011182, 16438, R28189, CHR0104R
Frequently Asked Questions
Is the Gates lower radiator hose 23750 right for the 2001-2005 Mercedes-Benz C320 V6 3.2L?
Yes. Gates 23750 fits the 2001-2005 Mercedes-Benz C320 V6 3.2L, and it also fits the 2001-2005 Mercedes-Benz C240 V6 2.6L.
What are the inside diameters on this Gates radiator coolant hose?
End 1 is 1.25 in (32 mm), end 2 is 1.5 in (38 mm) and end 3 is 0.80 in. The centerline length is 16 in (406 mm).
What is this Gates molded coolant hose made of?
The material is EPDM, plastic and steel. The tube is EPDM with synthetic fiber knit reinforcement and a heat-, ozone- and chemical coolant-resistant EPDM cover.
Does Gates 23750 come with a branch and a quick connector?
Yes. Gates 23750 is a modular assembly with one branch and one male quick connector already built in.
What temperature range and SAE standard does this hose meet?
It handles -40°F to +257°F (-40°C to +125°C). It meets SAE 20R3 EC Class D1 under 25 mm (1 in.) ID and SAE 20R4 EC Class D1 at 25 mm ID and over.
