Lower Radiator Coolant Hose for 2002-2005 Volkswagen Passat - Gates 24484

$111.99

Part number: 24484

UPC: 770075672494

Condition: New

Weight: 1.29 LBS

Item Package Quantity: 1

$111.99

Current Stock: 4

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

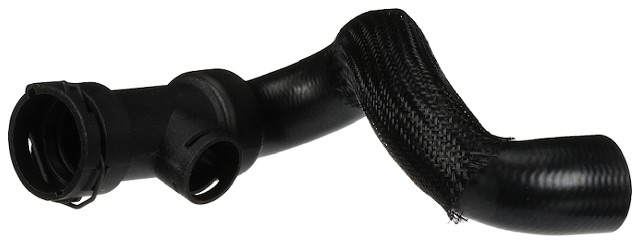

Gates Radiator Coolant Hose P/N:24484

$111.99

Description

Gates 24484 lower radiator coolant hose for the 2002-2005 Volkswagen Passat V6 2.8L is a Gates coolant hose that carries engine coolant. This Gates molded coolant hose is manufactured for specific applications.

Modular molded assembly with a female quick connector and a sensor port built in
Specifically engineered materials resist collapse under vacuum
Engineered to resist electrochemical degradation, the leading cause of hose failure
EPDM tube with synthetic fiber knit reinforcement and a heat-, ozone- and chemical coolant-resistant EPDM cover
Meets SAE 20R3 EC Class D1 under 25 mm (1 in.) ID and SAE 20R4 EC Class D1 for 25 mm (1 in.) ID and over
Temperature range: -40°F to +257°F (-40°C to +125°C)

Quick facts

Part: Gates 24484 radiator coolant hose
Fits: 2002-2005 Volkswagen Passat V6 2.8L
Position: Lower
Material: EPDM, plastic, steel
Condition: New

Coolant stains near the hose, a swollen cover or cracks can mean this hose is worn, though a radiator cap or thermostat that is failing can also be behind coolant loss or overheating.

Fits

This lower hose is a direct-fit replacement for the 2002-2005 Volkswagen Passat V6 2.8L, which takes one.

Specifications

Fit and size

Position: Lower
Quantity per vehicle: 1
Centerline length: 381 mm (15 in.)
End 1 inside diameter: 28 mm (1.12 in.)
End 2 inside diameter: 32 mm (1.26 in.)
Quick-connect fittings: 1

Build and materials

Construction: molded, modular
Material: EPDM, plastic, steel
Modular components: female quick connector, sensor port
Condition: New
Country of origin: Turkey

Installation notes

Replace the clamps each time a new coolant hose is installed.
Not for fuel or oil transfer applications.

Interchange: 20727S · B92026 · CHR0058P · 17132 · R25501 · 8D0121055AA

Product information is for general reference and may contain errors. See our Disclaimer.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

20727S, B92026, CHR0058P, 17132, 24484, R25501, 8D0121055AA

Buyer's Q&A

Frequently Asked Questions

Does the Gates 24484 lower radiator coolant hose fit the 2002-2005 Volkswagen Passat V6 2.8L?

Yes. Gates 24484 is a lower hose made for the 2002-2005 Volkswagen Passat V6 2.8L, which takes one.

What is the Gates radiator coolant hose made of?

Gates 24484 is listed as EPDM, plastic and steel. The tube is EPDM with a synthetic fiber knit reinforcement, under a heat-, ozone- and chemical coolant-resistant EPDM cover.

Does the Gates lower radiator hose have a sensor port?

Yes. This is a molded modular hose with a female quick connector and a sensor port built in. It has one quick-connect fitting and no branch connectors.

What size are the ends on this lower coolant hose?

One end has a 28 mm (1.12 in.) inside diameter and the other has a 32 mm (1.26 in.) inside diameter. The centerline length is 381 mm (15 in.).

Should I put new clamps on with this coolant hose?

Yes. New clamps go on with every new coolant hose. This hose is not for fuel or oil transfer applications.
