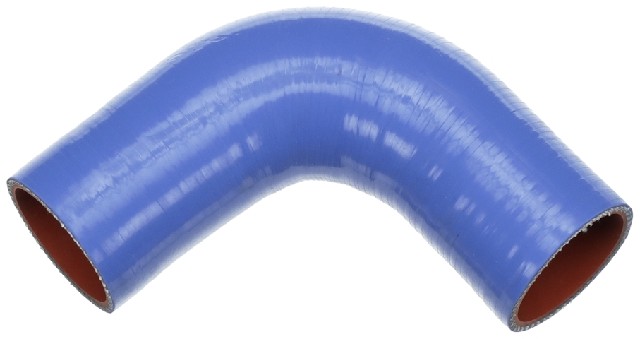

Gates 28210 radiator coolant hose for the 2010 Freightliner M2 4-cylinder 4.8L, the 2010-2013 M2 6-cylinder 6.4L or 7.2L, the 2012-2013 M2 4-cylinder 4.8L and other vehicles carries engine coolant through a molded 90-degree silicone elbow. This Gates molded coolant hose is made for heavy-duty, high-temperature spots, such as close to the exhaust, on the turbo hot side or where airflow around the engine is limited.
- Molded 90-degree silicone elbow with a 2 in (51 mm) inside diameter on both ends
- 4-ply construction with polyester knit reinforcement unaffected by coolant permeation and heat
- High-grade silicone cover that resists coolants, ozone, weathering, sunlight and extreme ambient temperatures
- Extra thick, resilient tube that prevents cold water leaks and hardening under heat
- Working temperature range of -65°F to +350°F (-54°C to +177°C)
- Exceeds the requirements of SAE J20R1, Class A, with the industry-standard blue cover and orange tube
Quick facts
- Part: Gates 28210 radiator coolant hose
- Fits: the 2010 Freightliner M2 4-cylinder 4.8L, the 2010-2013 M2 6-cylinder 6.4L or 7.2L, the 2012-2013 M2 4-cylinder 4.8L and other vehicles
- Position: Lower - pipe to radiator, upper - radiator to pipe, lower - radiator to pipe, lower - pipe to engine, upper - pipe to pipe, upper - pipe to pipe (front), upper - tank to pipe
- Material: Silicone
- Condition: New
A loose clamp, a leaking radiator or a worn water pump can be behind coolant loss and overheating too, so find the cause before you buy a new hose. A cracked, soft or swollen Gates coolant hose, or coolant seeping at its ends, can mean the hose is worn out.
Fits
It is listed for a wide range of Freightliner models, including the 2010-2013 M2 106 6-cylinder 6.4L and the 2010-2012 M2 112 6-cylinder 8.9L. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Lower - pipe to radiator, upper - radiator to pipe, lower - radiator to pipe, lower - pipe to engine, upper - pipe to pipe, upper - pipe to pipe (front), upper - tank to pipe
- Quantity per vehicle: 1
- Angle: 90 degrees
- Centerline length: 12 in (305 mm)
- Arm length: 6 in (152 mm)
- End 1 inside diameter: 2 in (51 mm)
- End 2 inside diameter: 2 in (51 mm)
Build and materials
- Material: Silicone
- Construction: 4-ply polyester-reinforced, molded
- Working temperature range: -65°F to +350°F (-54°C to +177°C)
- Condition: New
- Country of origin: India
In the box
This listing holds one radiator coolant hose, and the vehicle takes one.
Interchange: 57632 · 0516062101 · H19610
This part cross-references / interchanges with the following part numbers:
28210, 57632, 0516062101, H19610
Frequently Asked Questions
Is the Gates 28210 hose right for the 2010-2013 Freightliner M2 106 6-cylinder 6.4L?
Yes, Gates 28210 is listed for the 2010-2013 Freightliner M2 106 6-cylinder 6.4L, and that vehicle takes one hose. Open the "Vehicles it fits" section to check other models and engines.
Is Gates 28210 a lower radiator hose?
Yes, in some applications. Its catalog positions include lower - pipe to radiator, lower - radiator to pipe and lower - pipe to engine, along with several upper positions.
What size are the ends on this Gates flexible radiator hose?
Both ends have a 2 in (51 mm) inside diameter. It is a molded 90-degree elbow with a 12 in (305 mm) centerline length and 6 in (152 mm) arm length.
What temperature range is this silicone coolant hose rated for?
The working range is -65°F to +350°F (-54°C to +177°C). The hose also exceeds the requirements of SAE J20R1, Class A.
Does Gates 28210 have a reinforced layer under the silicone cover?
Yes, Gates 28210 has 4-ply construction with polyester knit reinforcement unaffected by coolant permeation and heat, under a high-grade silicone cover.
