Lower Radiator Coolant Hose for 2010-2013 Western Star 4900SA & More - Gates 28214

$193.99

$193.99

Current Stock: 23

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Part number: 28214

UPC: 770075461531

Gates Radiator Coolant Hose P/N:28214

$193.99

Description

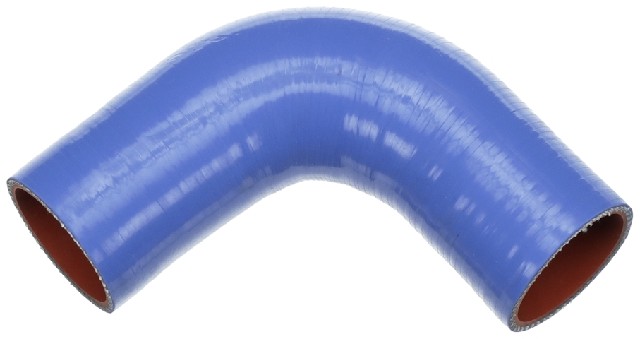

Gates 28214 lower radiator coolant hose for the 2010-2013 Western Star 4900SA 6-cylinder 14.0L and other vehicles carries coolant through a molded 90-degree silicone elbow. This Gates radiator coolant hose connects pipe to pipe or oil cooler to pipe in the lower position.

Molded 90-degree silicone elbow made for heavy-duty, high-temperature use
Suited to spots near the exhaust or turbo hot side, or where little air reaches the engine
4-ply construction with polyester knit reinforcement, unaffected by permeation of coolants and heat
Multiple layers of first-grade silicone, with a blue cover and orange tube for easy identification
Extra thick, resilient tube that helps prevent cold leaks and hardening under heat
High-grade silicone cover resists coolants, ozone, weathering, sunlight and extreme ambient temperatures

Quick facts

Part: Gates 28214 radiator coolant hose
Fits: 2010-2013 Western Star 4900SA 6-cylinder 14.0L and other vehicles
Position: Lower, pipe to pipe or oil cooler to pipe
Material: Silicone
Condition: New

Coolant stains at the hose ends, surface cracks or a hose that has gone hard can mean it is worn. With the engine off and cool, look over the hose and both ends first, because a loose connection can leak in a similar way. The lower connection takes a single hose.

Fits

This hose is a direct-fit replacement for the 2010-2013 Western Star 4900SA 6-cylinder 14.0L, the 2016 Western Star 6900XD 6-cylinder 14.0L or 14.9L and the 2006 Western Star 4900FA 6-cylinder 12.5L.

Specifications

Fit and size

Position: Lower, pipe to pipe or oil cooler to pipe
Quantity per application: 1
Angle: 90 degrees
End 1 inside diameter: 76 mm (3 in)
End 2 inside diameter: 76 mm (3 in)
Centerline length: 305 mm (12 in)
Arm length: 152 mm (6 in)

Build and materials

Material: Silicone
Construction: Premium 4-ply, polyester-reinforced
Molded: Yes
Working temperature range: -65 °F to +350 °F (-54 °C to +177 °C)
Exceeds requirements of SAE J20R1, Class A
Condition: New
Country of origin: India

Interchange: 57648 · 204233401 · H19614

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

28214, 57648, 204233401, H19614

Buyer's Q&A

Frequently Asked Questions

Is this Gates lower radiator hose right for the 2010-2013 Western Star 4900SA 6-cylinder 14.0L?

Yes. Gates 28214 is a lower hose listed for the 2010-2013 Western Star 4900SA 6-cylinder 14.0L, and that application takes one hose.

Which connections does this Gates coolant hose make?

It is a lower hose that connects pipe to pipe or oil cooler to pipe. Both ends are 76 mm (3 in) inside diameter, with a 305 mm (12 in) centerline length.

What temperature range does this Gates flexible radiator hose handle?

Its working temperature range is -65 °F to +350 °F (-54 °C to +177 °C), and Gates 28214 exceeds the requirements of SAE J20R1, Class A.

Does this Gates molded coolant hose have a blue cover and an orange tube?

Yes. The blue cover and orange tube follow the industry standard for easy identification, and the cover is high-grade silicone.

What can a worn silicone radiator coolant hose look like?

A bulge or soft spot you can see with the engine off and cool can mean the hose is wearing out, and a rising temperature gauge can also point to a cooling problem. A shop can test the system.
