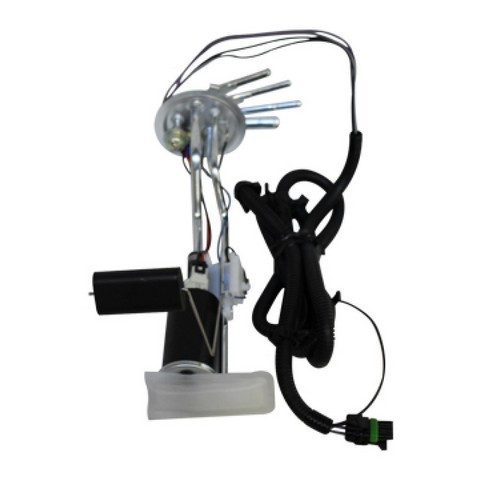

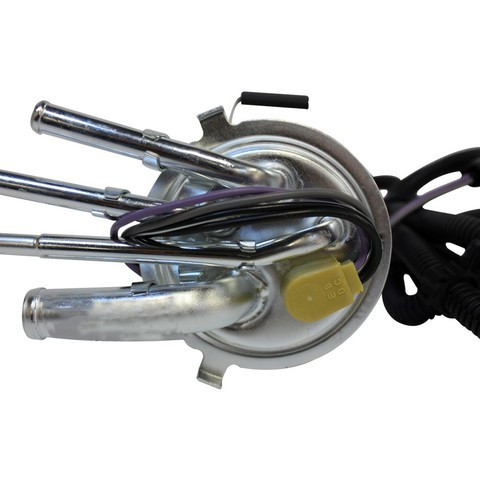

GMB 530-6250 fuel pump and sender assembly for the 1987-1990 Chevrolet Astro 4-cylinder 2.5L, the 1987-1994 Astro V6 4.3L and other vehicles moves fuel from the tank to the engine and carries the sender that reports fuel level. It is built to OEM specifications or better.
- Factory tested on every unit for leakage and dimensional precision
- Pressure and flow-rate tested in-house on every unit
- Durability tested during development for longer life
- Designed to reduce noise
Quick facts
- Part: GMB 530-6250 fuel pump and sender assembly
- Fits: 1987-1990 Chevrolet Astro 4-cylinder 2.5L, the 1987-1994 Astro V6 4.3L and other vehicles
Hard starting, sputtering under load or a fuel gauge that reads wrong can mean the pump or sender is worn. These signs alone do not prove it, since a clogged fuel filter is another common cause.
Fits
It fits the 1987-1990 Chevrolet Astro 4-cylinder 2.5L, the 1987-1994 Astro V6 4.3L, the 1987-1990 GMC Safari 4-cylinder 2.5L and the 1987-1994 Safari V6 4.3L. The 1987-1994 GMC Safari V6 4.3L takes one.
Specifications
- Quantity per vehicle: 1
- Country of origin: China
In the box
One fuel pump and sender assembly, one O-ring and one lock ring, the hardware required for installation.
Interchange: HP10019 · PL0801S · 19111407 · 25004367 · 25092715 · 25093908 · SP18B1H
This part cross-references / interchanges with the following part numbers:
HP10019, PL0801S, 5306250, 19111407, 25004367, 25092715, 25093908, SP18B1H
Frequently Asked Questions
Will this Chevy Astro fuel pump fit a 1987-1994 Astro with the V6 4.3L?
Yes. GMB 530-6250 fits the 1987-1994 Chevrolet Astro V6 4.3L, and the 1987-1990 Astro 4-cylinder 2.5L takes it too.
Does this Safari fuel pump fit a 1987-1990 GMC Safari with the 4-cylinder 2.5L?
Yes. GMB 530-6250 fits the 1987-1990 GMC Safari 4-cylinder 2.5L, and the 1987-1994 Safari V6 4.3L as well.
Does the GMB fuel pump come with an O-ring and lock ring?
Yes. The assembly includes one O-ring and one lock ring, the hardware required for installation.
Is this fuel pump and sender assembly tested for leaks and flow?
Yes. Every unit is factory tested for leakage and dimensional precision, and pressure and flow-rate tested in-house.
Does GMB 530-6250 replace number 25004367?
Yes. 25004367 is one of the numbers this assembly replaces, along with HP10019, PL0801S and 19111407.
