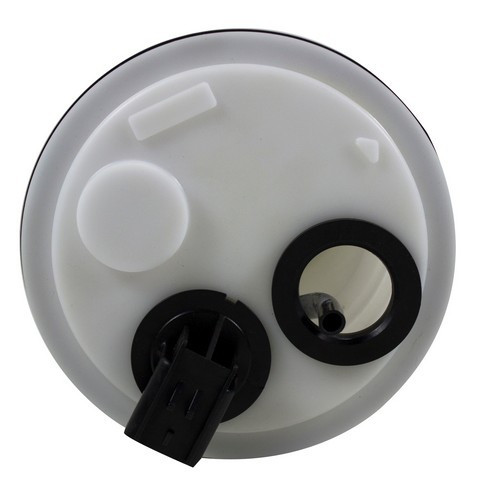

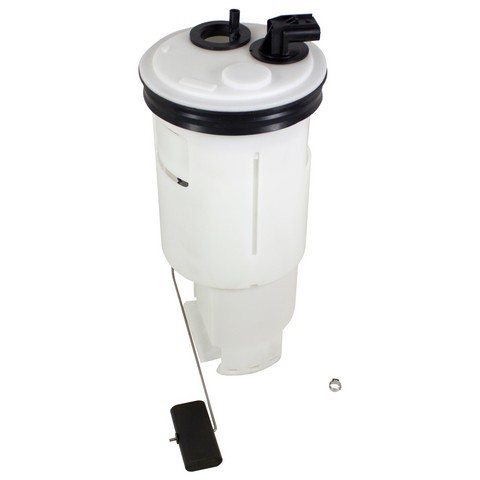

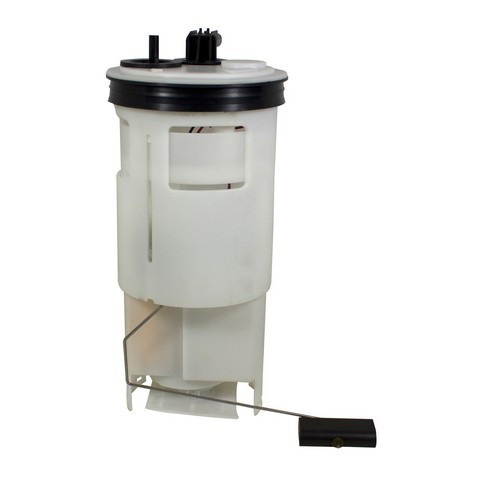

GMB 520-2200 fuel pump module for the 1997-1999 Dodge Dakota 4-cylinder 2.5L, V6 3.9L or V8 5.2L, the 1998-2003 Dakota V8 5.9L and the 2000-2003 Dakota V8 4.7L moves gasoline from the tank toward the engine. It is also called a fuel pump assembly, and the fuel sending unit is part of it.
- Factory tested at 100% for leakage and dimensional precision
- Pressure and flow-rate tested in-house on every unit
- Durability tested during development for longer life
- Designed to reduce noise
Quick facts
- Part: GMB 520-2200 fuel pump module
- Also called: fuel pump assembly
- Fits: the 1997-1999 Dodge Dakota 4-cylinder 2.5L, V6 3.9L or V8 5.2L, the 1998-2003 Dakota V8 5.9L and the 2000-2003 Dakota V8 4.7L
- Condition: New
Hard starting, stalling or a loss of power can mean the pump in the module is worn, though a clogged fuel filter or a bad fuel pump relay can be behind them too, so find the cause before you replace the module.
Fits
It is built to OE-level tolerances and fits the 1997-1999 Dodge Dakota 4-cylinder 2.5L, V6 3.9L or V8 5.2L, the 1998-2003 Dakota V8 5.9L and the 2000-2003 Dakota V8 4.7L. Only one module is needed per vehicle.
Specifications
Fit and size
- Quantity per vehicle: 1
- Voltage: 12 V
- Maximum pressure: 44 psi
- Maximum flow rating: 100 U.S. gallons per hour
- Average current draw: 8.5 A
Build and materials
- Fuel type: Gasoline
- Fuel sending unit: included
- Condition: New
- Country of origin: China
In the box
One fuel pump module with its fuel sending unit, one tank seal and one hose clamp. The hardware needed for installation is included.
Interchange: EFM1350303 · E7116M · F3127A · P74738M · 4882205 · 4886298AA · 4897494AA · 4897921AA · 5012273AA · 5012273AB · 5012273AC · 5012273AD · 52102193AB · FG0235 · AFS0563S · RE0563S · 189GE · C0437M · EG116M · P528M · SP7116M · 150073
This part cross-references / interchanges with the following part numbers:
EFM1350303, E7116M, F3127A, P74738M, 4882205, 4886298AA, 4897494AA, 4897921AA, 5012273AA, 5012273AB, 5012273AC, 5012273AD, 52102193AB, FG0235, AFS0563S, RE0563S, 5202200, 189GE, C0437M, EG116M, P528M, SP7116M, 150073
Frequently Asked Questions
Does the GMB 520-2200 fuel pump module fit the 2000-2003 Dodge Dakota V8 4.7L?
Yes. GMB 520-2200 fits the 2000-2003 Dodge Dakota V8 4.7L, and the truck takes one module.
Does this fuel pump module come with a tank seal and hose clamp?
Yes. GMB 520-2200 comes with one tank seal and one hose clamp, and the fuel sending unit is part of the module.
What pressure and flow ratings does this fuel pump module have?
Maximum pressure is 44 psi and maximum flow is 100 U.S. gallons per hour. It runs on 12 volts with an average current draw of 8.5 A.
Is this fuel pump module made for gasoline?
Yes. The fuel type for this module is gasoline.
Is this fuel pump module tested before it is sold?
Yes. Every unit is checked for leakage and dimensional precision at the factory and for pressure and flow rate in-house. The design also went through durability testing during development.
