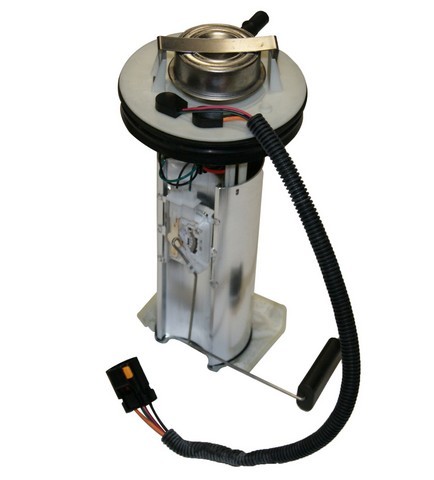

GMB 520-2210 fuel pump module for the 1997-2000 Jeep Cherokee 4-cylinder 2.5L and the 1997-2001 Cherokee 6-cylinder 4.0L moves gasoline from the tank to the engine. This fuel pump assembly is built to OEM specifications or better.
- Every unit is factory tested for leakage and dimensional precision
- Every unit is pressure and flow-rate tested in-house
- Durability tested during development for longer life
- Designed to reduce noise
- Fuel sending unit included with the pump module
Quick facts
- Part: GMB 520-2210 fuel pump module
- Also called: fuel pump assembly
- Fits: 1997-2000 Jeep Cherokee 4-cylinder 2.5L and the 1997-2001 Cherokee 6-cylinder 4.0L
- Condition: New
Hard starting, stalling under load or a whine from the tank can mean the pump is wearing out. These signs alone do not prove the module is the problem, since a clogged fuel filter can produce similar symptoms.
Fits
This is a direct-fit replacement for the 1997-2000 Jeep Cherokee 4-cylinder 2.5L and the 1997-2001 Cherokee 6-cylinder 4.0L, and each takes one module.
Specifications
Fit and size
- Quantity per vehicle: 1
- Voltage: 12 V
- Maximum pressure: 44 psi
- Maximum flow rate: 80 U.S. gallons per hour
- Average current draw: 6.5 amp
Build and materials
- Fuel type: gasoline
- Fuel sending unit: included
- Mounting hardware: 1 tank seal
- Condition: New
- Country of origin: China
In the box
One fuel pump module and one tank seal.
Installation notes
- Includes all required hardware for installation.
Interchange: EFM1340201 · E7121MN · F3132A · 67658 · P75040M · 4874173 · 4874173AB · 5012953AA · 5012953AB · 5012953AC · FG1076 · RE0566S · 026GE · C0439M · EG121MN · P408M · SP7121M · C6011 · 150185
This part cross-references / interchanges with the following part numbers:
EFM1340201, E7121MN, F3132A, 67658, P75040M, 4874173, 4874173AB, 5012953AA, 5012953AB, 5012953AC, FG1076, RE0566S, 5202210, 026GE, C0439M, EG121MN, P408M, SP7121M, C6011, 150185
Frequently Asked Questions
Does the GMB 520-2210 fit the 1997-2000 Jeep Cherokee 4-cylinder 2.5L?
Yes. GMB 520-2210 fits the 1997-2000 Jeep Cherokee 4-cylinder 2.5L and the 1997-2001 Cherokee 6-cylinder 4.0L, and each takes one module.
Does this fuel pump module come with a tank seal?
Yes. The module comes with one tank seal and the fuel sending unit, plus the hardware needed for installation.
What pressure and flow rate is this 12-volt fuel pump module rated for?
GMB 520-2210 is rated for a maximum of 44 psi and 80 U.S. gallons per hour, with an average current draw of 6.5 amp.
Can this module replace a pump numbered 5012953AA?
Yes. 5012953AA is one of the numbers GMB 520-2210 interchanges with. The Interchange line on this page lists the others.
Is each GMB 520-2210 module tested before sale?
Yes. Each unit goes through a factory leakage and dimensional-precision test and an in-house pressure and flow-rate test.
