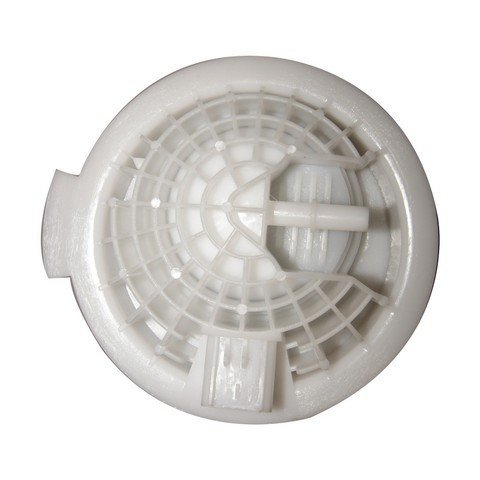

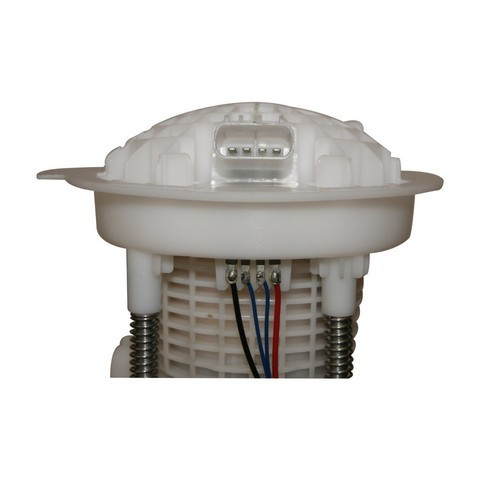

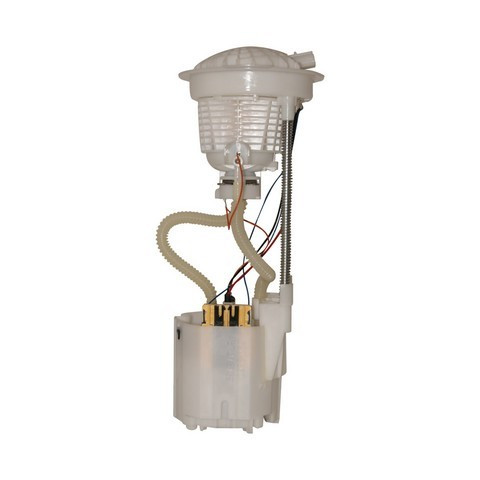

GMB 520-2360 fuel pump module for the 2007 Dodge Ram 1500 V6 3.7L or V8 4.7L, the 2007-2008 Ram 1500 V8 5.7L and other vehicles pumps gasoline from the tank to the engine. It is also listed as a fuel pump assembly and includes the fuel sending unit.
- Factory tested on every unit for leakage and dimensional precision
- Pressure and flow-rate tested in-house on every unit
- Durability tested during development for longer life
- Designed to reduce noise
- Includes all hardware required for installation
Quick facts
- Part: GMB 520-2360 fuel pump module
- Also called: fuel pump assembly
- Fits: 2007 Dodge Ram 1500 V6 3.7L or V8 4.7L, the 2007-2008 Ram 1500 V8 5.7L and other vehicles
- Condition: New
Hard starting, stalling under load or a whine from the tank can mean the pump is wearing out. None of these alone proves the module is the problem, since a faulty fuel pump relay can look much the same.
Fits
This module is a direct-fit replacement for the 2007 Dodge Ram 1500 V6 3.7L or V8 4.7L and the 2007-2008 Ram 1500 V8 5.7L, as well as the 2005-2009 Dodge Ram 2500 V8 5.7L and the 2005-2009 Dodge Ram 3500 V8 5.7L. GMB builds it to OE-level specifications.
Specifications
Fit and size
- Quantity per vehicle: 1
- Voltage: 12 V
- Fuel type: gasoline
- Maximum pressure: 44 psi
- Maximum flow rating: 130 U.S. gallons per hour
- Average current draw: 8.5 amp
Build and materials
- Fuel sending unit: included
- Condition: New
- Country of origin: China
In the box
One fuel pump module with one O-ring and one float arm. This listing is one module, and each vehicle takes one.
Interchange: MU1435 · E7182M · F3193A · P76277M · P76841M · 5134554AA · 5134554AB · 5134554AC · 5134554AD · 5134554AE · 5134554AF · 68004489AA · 68004518AA · RL004489AA · RL004518AA · RL134554AF · FG0473 · FG1427 · C0476M · EG182M · SP7023M · SP7237M · 150116
This part cross-references / interchanges with the following part numbers:
MU1435, E7182M, F3193A, P76277M, P76841M, 5134554AA, 5134554AB, 5134554AC, 5134554AD, 5134554AE, 5134554AF, 68004489AA, 68004518AA, RL004489AA, RL004518AA, RL134554AF, FG0473, FG1427, 5202360, C0476M, EG182M, SP7023M, SP7237M, 150116
Frequently Asked Questions
Does the GMB 520-2360 fuel pump module fit a 2005-2009 Dodge Ram 2500 V8 5.7L?
Yes. GMB 520-2360 fits the 2005-2009 Dodge Ram 2500 V8 5.7L and the 2005-2009 Dodge Ram 3500 V8 5.7L.
Does this fuel pump module come with the fuel sending unit?
Yes. GMB 520-2360 is one module that includes the fuel sending unit, an O-ring and a float arm, and the vehicle takes one.
What pressure and flow is this fuel pump module rated for?
This module is rated for up to 44 psi and 130 U.S. gallons per hour on gasoline. It runs on 12 volts and draws an average of 8.5 amp.
Is this GMB fuel pump module built to run quietly?
Yes. It is designed to reduce noise, and its durability was tested during development for longer life.
Is 5134554AF the same as GMB 520-2360?
Yes. GMB 520-2360 replaces 5134554AF, along with other numbers such as 68004489AA and FG0473.
