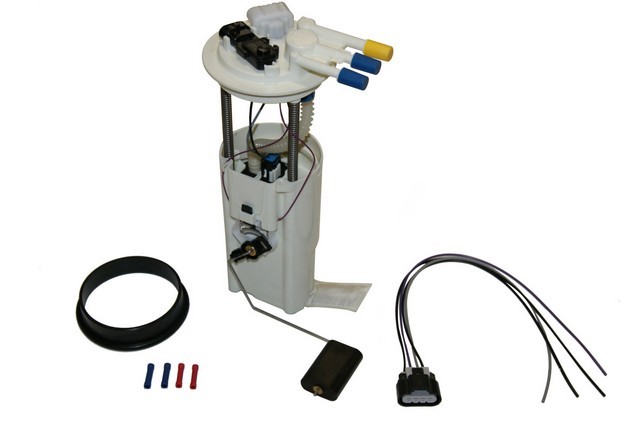

GMB 530-2100 fuel pump module for the 2000-2005 Chevrolet Impala V6 3.4L or 3.8L and other vehicles moves gasoline from the tank to the engine. Also sold as a fuel pump assembly, it includes the fuel sending unit and is built to OE-level tolerances.
A worn module can show up as hard starting, stalling or a fuel gauge that reads wrong. Several other faults produce these symptoms too, so before replacing the module, look at the fuel pump fuse and the wiring connector for damage or corrosion with the engine off, and leave pressure tests to a shop.
The vehicles it fits include the 2000-2005 Chevrolet Monte Carlo V6 3.4L or 3.8L and the 2000-2005 Buick Century V6 3.1L. The 2000-2005 Chevrolet Impala V6 3.4L or 3.8L takes one module.
Fit and size
Build and materials
One fuel pump module with a tank seal, four wire connectors, a wire harness and an installation guide.
Interchange: EFM0940718 · G3553A · E3542M · F2553A · P74928M · FG0111 · FG0342 · AFS0759S · RE0759S · 19177221 · 19180109 · 25317743 · 25331861 · 25344933 · 25345021 · 25349604 · 89060193 · MPA30044 · C0192M · C0193M · EC542M · EC542MC · P1001M · SP6177M · C8016 · 150046 · USEP3542M
This part cross-references / interchanges with the following part numbers:
Does the GMB 530-2100 fit the 2000-2005 Chevrolet Impala V6 3.4L or 3.8L?
Yes, GMB 530-2100 fits the 2000-2005 Chevrolet Impala with the V6 3.4L or 3.8L. If your car is a different one, look up its year and engine in the "Vehicles it fits" section of this page.
Does the GMB 530-2100 include the fuel sending unit and tank seal?
Yes, the GMB 530-2100 comes with the fuel sending unit, plus a tank seal, four wire connectors, a wire harness and an installation guide.
How much pressure and flow does this fuel pump module handle?
Maximum pressure is 44 psi and maximum flow is 100 U.S. gallons per hour on gasoline. It is a 12-volt unit with an average current draw of 9.5 amp.
What does the fuel sending unit in this module do?
The fuel sending unit reports the fuel level to the gauge. It is part of this module, so if it is the reason for a wrong gauge reading, replacing the module replaces it.
How is this fuel pump module tested?
Every unit is tested for leakage and dimensional precision and is pressure and flow-rate tested in-house. Durability testing was also done during development.
