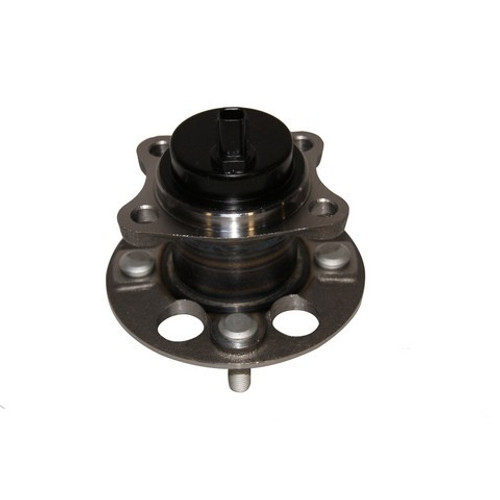

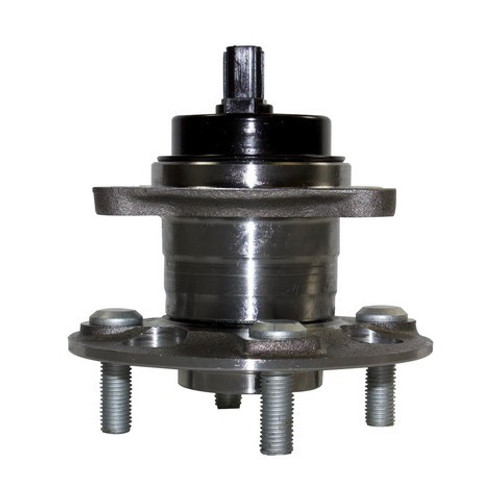

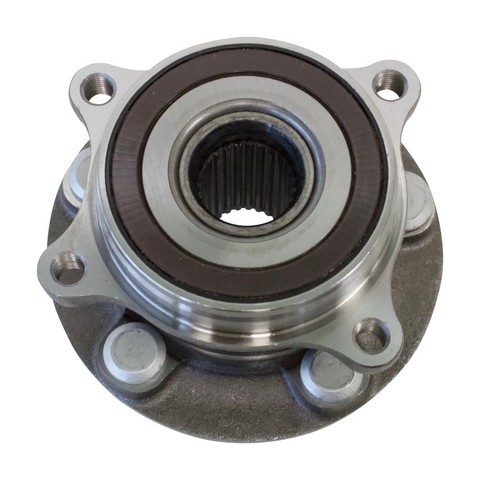

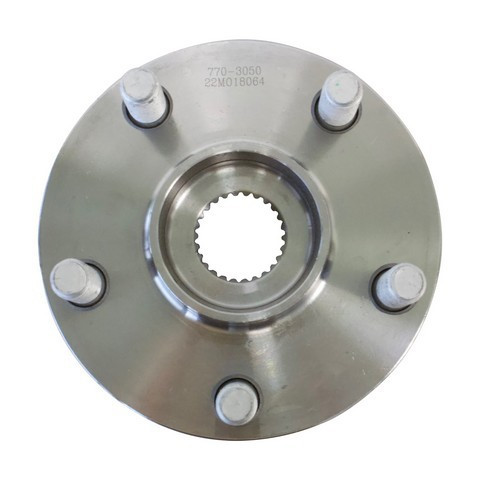

GMB 770-3050 front wheel bearing and hub assembly for the 2010-2015 Toyota Prius and other vehicles carries the wheel and lets it spin freely. Made to OEM specifications or better, it replaces the bearing and hub as one unit.
- High-strength steel construction
- Sensors made for proper ABS function
- Bearing preloaded to reduce excess noise and vibration
- Roll-formed hub for higher assembly strength
- Triple-lip seals protect the bearing
Quick facts
- Part: GMB 770-3050 wheel bearing and hub assembly
- Fits: 2010-2015 Toyota Prius and other vehicles
- Position: Front
- Material: Steel
- Condition: New
A hum or growl that changes with speed, play at the wheel or an ABS warning light can mean the bearing is worn. Before you replace this assembly, rule out the tires, brakes and suspension parts, which can make similar noises. This listing is one assembly; the 2010-2015 Toyota Prius takes two, and both sides are normally replaced together.
Fits
It fits the 2010-2015 Toyota Prius, the 2011-2017 Lexus CT200h and the 2012-2015 Toyota Prius Plug-In, and works for wheel bearing replacement on each of them.
Specifications
Fit and size
- Position: front
- Quantity per vehicle: 2
- Wheel studs: 5, M12X1.5
- Flange bolt holes: 4, M10x1.25
- Bolt circle diameter: 4 in
- Flange diameter: 5 in
- Flange offset: 2 in
- Brake pilot diameter: 3.3 in
- Wheel pilot diameter: 2.2 in
- Spline count: 26
Build and materials
- Material: steel
- Condition: new
- Country of origin: Thailand
Interchange: WE61648 · 0516425 · 513287 · 713287 · BR930660 · 102231
This part cross-references / interchanges with the following part numbers:
WE61648, 0516425, 7703050, 513287, 713287, BR930660, 102231
Frequently Asked Questions
Is this Prius bearing the right one for the 2010-2015 Toyota Prius?
Yes. GMB 770-3050 is a front wheel bearing and hub assembly for the 2010-2015 Toyota Prius, and it fits the 2012-2015 Toyota Prius Plug-In as well.
What are the stud size and bolt circle of this wheel bearing and hub assembly?
It has five M12X1.5 wheel studs and a 4 in bolt circle diameter. The flange is 5 in across, with a 3.3 in brake pilot and a 2.2 in wheel pilot.
Does this wheel bearing and hub assembly work with ABS?
Yes. It carries OE-type sensors made to keep ABS working properly.
Where are GMB wheel bearings like this one made?
GMB 770-3050 lists Thailand as its country of origin.
Why is this wheel bearing and hub assembly preloaded?
The bearing is preloaded to reduce excess noise and vibration. The hub is also roll formed for higher assembly strength.
