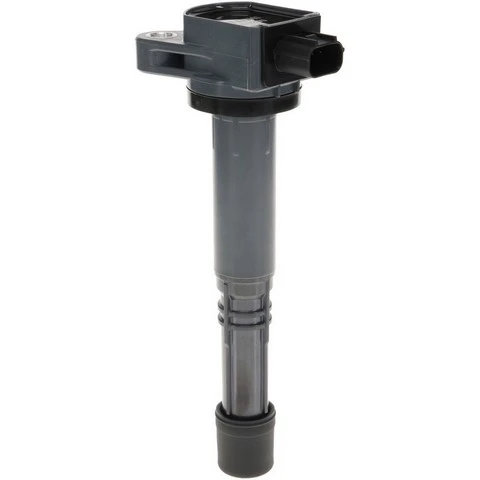

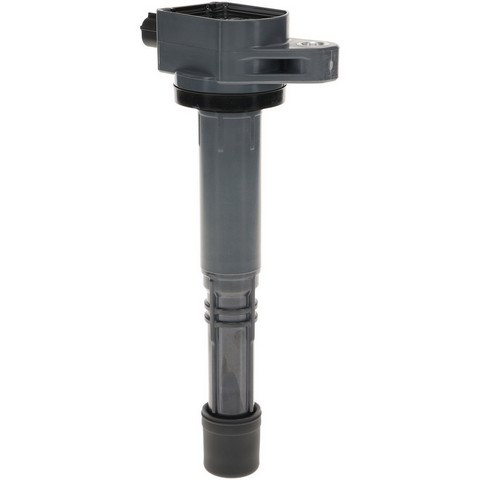

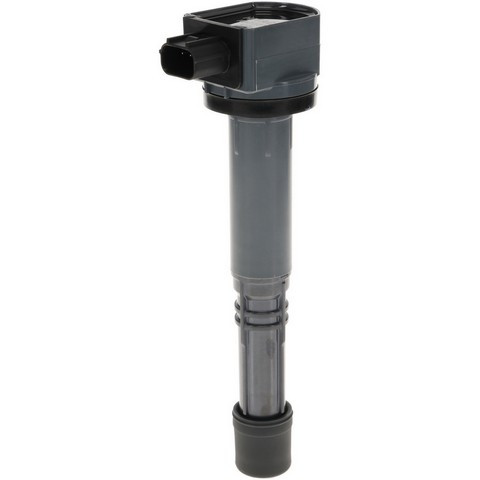

Deliver the high-voltage spark your engine's plugs need with the Hitachi Astemo Ignition Coil (IGC0200). This coil-on-plug unit mounts directly over the spark plug and steps up battery voltage to the high voltage that fires the plug, and it drops in as a direct-fit replacement for the 2008-2012 Honda Accord [L4-2.4L], 2010-2014 Honda CR-V [L4-2.4L], 2012-2015 Honda Civic [L4-2.4L], 2012-2015 Honda Crosstour [L4-2.4L], and 2013-2015 Acura ILX [L4-2.4L].
- Coil-on-plug design: one-bolt mount, seats directly on the plug.
- 3-pin connector: three male pin terminals; rated 14.0 V.
- Welded connections: electronic connection points are welded to hold up through heat cycles.
- Built to spec: designed to meet each specific vehicle's requirements and approved by OE manufacturers.
If a failed coil is the cause of a misfire, rough idle, hesitation, or an illuminated check engine light, this replaces it — diagnose the cause before replacing. The listed applications use four coils per engine; sold individually, so order four for a complete set.
Interchange: 30520-R40-007 · 30520R40007 · GN10369 · 48980Country of origin: China.
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
30520-R40-007, GN10369, 48980
Frequently Asked Questions
What does this ignition coil do?
It steps up battery voltage to the high voltage needed to fire the spark plug it sits on. This coil-on-plug unit mounts directly over the plug with a single bolt.
Will this coil fit my vehicle?
It's a direct-fit replacement for the 2013-2015 Acura ILX, 2008-2012 Honda Accord, 2012-2015 Honda Civic, 2012-2015 Honda Crosstour, and 2010-2014 Honda CR-V, all with the L4-2.4L engine. Check the "Vehicles it fits" section.
How many coils do I need?
The listed applications use four coils per engine. This coil is sold individually, so order four for a complete set.
What symptoms may mean the coil needs replacing?
Signs a coil may be failing include a misfire, rough idle, hesitation, or an illuminated check engine light. Diagnose the cause first, since these can have other sources.
What numbers does this coil interchange with?
It cross-references 30520-R40-007 (30520R40007), GN10369, and 48980. Its own manufacturer part number is IGC0200.
