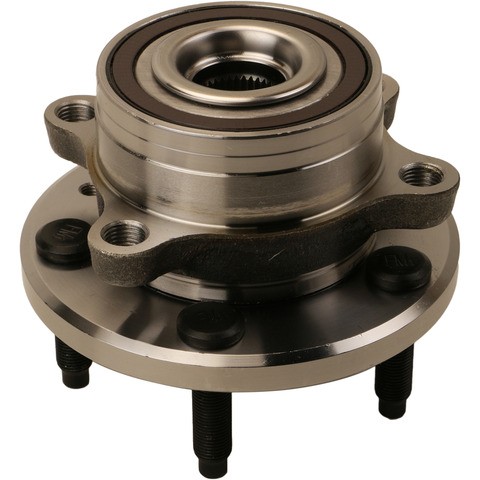

MOOG 512460 wheel bearing and hub assembly for the 2011-2019 Ford Explorer and other vehicles carries the wheel on a bearing and holds the wheel studs.
- Application-specific raceway design reduces stress, rotation and heat on components for a longer service life
- Coated wheel studs resist corrosion and rust for easier removal and proper torqueing
- Engineered for fast installation
- MOOG wheel bearing and hub assemblies are tested throughout design and development by MOOG engineers
Quick facts
- Part: MOOG 512460 wheel bearing and hub assembly
- Fits: 2011-2019 Ford Explorer and other vehicles
- Position: Front, rear
- Condition: New
A humming or grinding noise from a wheel, or play at the wheel, can point to a worn bearing. Worn tires, a dragging brake or a loose suspension part can be behind similar noises too, so find the cause before buying. The car takes two, one on each side of the axle.
Fits
This wheel bearing and hub assembly fits the 2011-2019 Ford Explorer and the 2013-2019 Ford Police Interceptor Utility. This listing is one assembly; the other side of that axle is normally done at the same time.
Specifications
Fit and size
- Position: front, rear
- Quantity per vehicle: 2
- Bolt circle diameter: 114.3 mm
- Brake pilot diameter: 67.9 mm
- Flange diameter: 145.6 mm
- Flange offset: 42.8 mm
- Flange bolt holes: 4
Build and materials
- Wheel studs: coated
- ABS sensor: not included
- Condition: New
- Country of origin: Taiwan
In the box
One wheel bearing and hub assembly. The ABS sensor is not included.
Interchange: HUB-87
WE60589 · BR930809 · WH1162 · BB532C300AC · BB5Z1104A · G512460 · H512460 · BR930380 · HA590446
This part cross-references / interchanges with the following part numbers:
WE60589, BR930809, WH1162, BB532C300AC, BB5Z1104A, G512460, H512460, HUB-87, BR930380, HA590446
