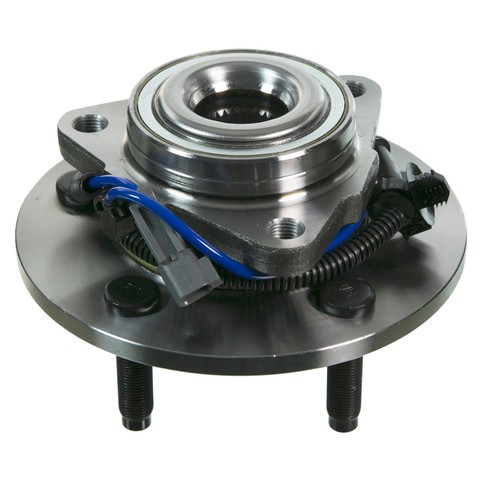

MOOG 515113 front wheel bearing and hub assembly for the 2006-2009 Dodge Ram 1500 is a MOOG wheel hub that holds the front wheel and lets it turn. It replaces the bearing and hub as one unit.
- Precise roll-form design sets consistent, optimal factory-installed preload to limit noise and wear
- Application-specific advanced raceway design reduces stress, rotation and heat on components
- Quad lip seal design keeps moisture and other contaminants out
- Coated wheel studs resist corrosion and rust for easier removal and proper torquing
- MOOG wheel bearing and hub assemblies go through comprehensive testing during design and development
Quick facts
- Part: MOOG 515113 wheel bearing and hub assembly
- Fits: 2006-2009 Dodge Ram 1500
- Position: Front
- Condition: New
A humming or growling noise that changes with speed, play at the wheel or an ABS warning light can mean this bearing is worn, though a tire problem or a brake part such as the rotor can be behind the same signs.
Fits
This assembly fits the 2006-2009 Dodge Ram 1500. The 2006-2009 Dodge Ram 1500 takes two, one for each front wheel, so this listing is a single assembly: order two and fit them as a pair.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Bolt circle diameter: 139.7 mm
- Flange bolt holes: 3
- Brake pilot diameter: 78.4 mm
- Flange diameter: 183 mm
- Flange offset: 46.8 mm
- Flange shape: modified
Build and materials
- Type: wheel bearing and hub assembly
- ABS sensor: included
- Condition: New
- Country of origin: China
In the box
One wheel bearing and hub assembly with its ABS sensor.
Interchange: 720-3010
WE61654 · BR930690 · 52070323AE · 52070323AF · 52070323AG · 52070323AH · 68088025AA · NT515113 · 102162 · G515113 · H515113 · SP500101
This part cross-references / interchanges with the following part numbers:
WE61654, BR930690, 52070323AE, 52070323AF, 52070323AG, 52070323AH, 68088025AA, NT515113, 102162, 720-3010, G515113, H515113, SP500101
Frequently Asked Questions
Is MOOG 515113 the Ram 1500 wheel bearing for the 2006-2009 Dodge Ram 1500?
Yes. MOOG 515113 is a front wheel bearing and hub assembly that fits the 2006-2009 Dodge Ram 1500.
Does the MOOG hub bearing assembly come with an ABS sensor?
Yes. MOOG 515113 includes the ABS sensor with the assembly.
What bolt circle do these MOOG front wheel bearings have?
This front assembly has a 139.7 mm bolt circle with 3 flange bolt holes, a 78.4 mm brake pilot diameter and a 183 mm flange diameter.
How can I tell if a front wheel bearing and hub assembly is going bad?
A humming or growling noise that changes with speed, or play at the wheel, can mean the bearing is wearing out. Have a shop check it promptly.
What does the quad lip seal on this assembly do?
The quad lip seal design inhibits damage by keeping moisture and other contaminants out.
