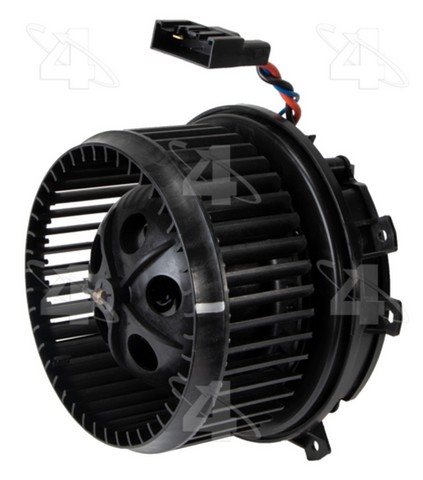

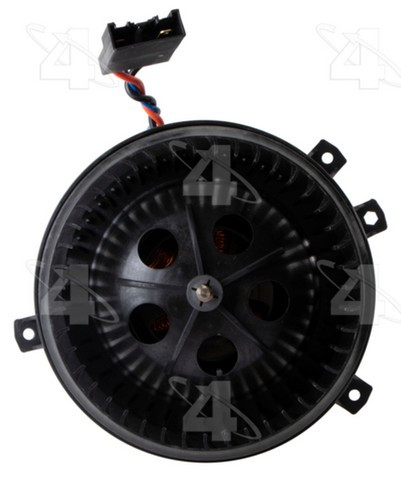

Four Seasons 76506 blower motor for the 2014-2020 Chevrolet Impala and other vehicles drives the wheel that pushes heated and cooled air through the cabin vents. This HVAC blower motor is a brushless, flanged and vented unit.
- Hermetically sealed, thermally protected electronics
- Cage wheel included, 5.875 in diameter
- Three lead wires with a female connector and 3 terminals
- 12-volt motor with counterclockwise (CCW) rotation
Quick facts
- Part: Four Seasons 76506 blower motor
- Also called: HVAC blower motor
- Fits: 2014-2020 Chevrolet Impala and other vehicles
- Material: Plastic / Metal
- Condition: New
Weak airflow, no air at any fan speed, or a squeal or rattle from behind the dash can mean the blower motor is wearing out. A failed blower resistor, a clogged cabin air filter or a bad control switch can bring on some of these signs too, so find the cause before you buy.
Fits
This blower motor fits the 2014-2020 Chevrolet Impala and the 2013-2019 Cadillac XTS. Its design and performance meet or exceed O.E., and the magnet size and properties and the motor RPM match or exceed OEM.
Specifications
Fit and size
- Quantity per vehicle: 1
- Wheel diameter: 5.875 in
- Voltage: 12 V
- Rotation: counterclockwise (CCW)
- Connector: 3 lead wires with female connector, 3 terminals
Build and materials
- Type: brushless, flanged, vented
- Material: Plastic / Metal
- Cage wheel: included
- Electronics: hermetically sealed and thermally protected
- Condition: New
- Country of origin: Canada
In the box
One blower motor with its cage wheel. This listing holds one, and each vehicle takes one.
Interchange: 1581836 · 1581909 · 6553407 · PM4045 · 22743870 · 22960485 · 23114667 · 23276004 · 23416437 · 84493340 · 2311890 · 412506 · A58506 · 700346 · BM10033 · BM10033C
This part cross-references / interchanges with the following part numbers:
1581836, 1581909, 6553407, 76506, PM4045, 22743870, 22960485, 23114667, 23276004, 23416437, 84493340, 2311890, 412506, A58506, 700346, BM10033, BM10033C
Frequently Asked Questions
Will this Chevy Impala blower motor fit a 2014-2020 Impala?
Yes. Four Seasons 76506 fits the 2014-2020 Chevrolet Impala, and it also fits the 2013-2019 Cadillac XTS.
Is the cage wheel included with this blower motor?
Yes. This listing is one brushless blower motor with its cage wheel, which measures 5.875 in across, and each vehicle takes one.
Is the Four Seasons blower motor brushless?
Yes. Four Seasons 76506 is a brushless, flanged, vented motor with counterclockwise rotation and 12-volt operation. Its electronics are hermetically sealed and thermally protected.
How does the 76506 connect to the vehicle wiring?
This blower motor has three lead wires ending in a female connector with 3 terminals.
Does the 76506 replace OE number 22960485?
Yes. Four Seasons 76506 is listed as a replacement for 22960485, along with 23114667, 1581836 and the other numbers on the Interchange line.
