KYB Suspension Shock Absorber P/N:SA1016

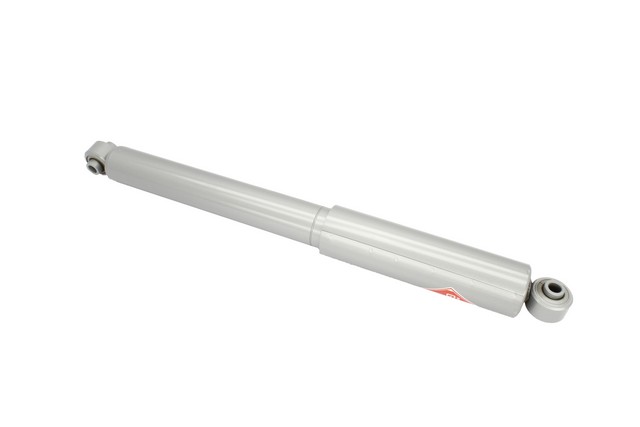

KYB KG6196 rear shock absorber for the 2004-2015 Nissan Titan damps rear suspension movement with a high-pressure nitrogen gas chamber. This KYB shock absorber adds up to 25% more damping than original equipment shocks.
Wet oil on the shock body, a bouncy ride over bumps or a rear end that wallows can mean a shock is wearing out. Before replacing it, look over the body for fluid with the engine off, and check the mounts, since worn mounts or other suspension parts can ride rough too. Fit both rear shocks together; this listing is one shock.
This rear shock absorber is a direct-fit replacement for the 2004-2015 Nissan Titan, and its components and valving are designed specifically for this model.
Fit and size
Build and materials
One rear shock absorber. The 2004-2015 Nissan Titan takes two at the rear, so the second one is ordered separately.
Interchange: G63878 · 37251 · 562007S326 · E62009FG0A · E62009FG0B · E6200ZR40A · E6200ZR40B
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Is the KYB rear shock absorber KG6196 right for the 2004-2015 Nissan Titan?
Yes. KYB KG6196 is a rear shock absorber for the 2004-2015 Nissan Titan, and the truck takes two at the rear.
Is this KYB gas shock absorber a monotube or a twin-tube?
The KYB KG6196 is a monotube. It has a hydraulic piston and valve area plus a separate high-pressure nitrogen gas area with a floating piston.
What does the triple chrome plated rod on this shock do?
The piston rod is ultra-smooth and triple chrome plated to reduce seal wear. Fluid leaking can be a cause of shock failure, so seal wear matters.
How do I check a rear shock absorber for leaks?
With the engine off, look at the shock body for wet, oily fluid. A bouncy ride or clunking from the rear can also point to wear, and a shop can test it if you are unsure.
Is this KYB absorber built for towing and heavier wheels?
Yes. The Gas-a-just design adds damping over the OE design for vehicles that work, tow and run larger, heavier tires and wheels.
No reviews yet — be the first to review this product.
