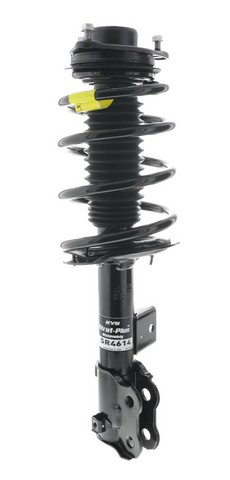

KYB SR4614 front right strut assembly for the 2012-2014 Hyundai Sonata carries vehicle weight and sets ride height at the front right corner. This complete strut and coil spring assembly also acts as the steering pivot and helps control stability.
- KYB Strut-Plus line, engineered to help restore handling and control
- High carbon steel coil spring developed around vehicle attributes and corner weights to help restore ride height
- KYB Excel-G strut with a steel outer shell and application-specific precision damping valves
- Application-engineered KYB spring matched to the strut to hold ride height longer without sacrificing ride quality
- Engineered to help vehicles with electronic safety systems such as ESC and ABS
Quick facts
- Part: KYB SR4614 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2012-2014 Hyundai Sonata
- Position: Front right
- Condition: New
A bouncy ride, nose dive when braking or clunks over bumps can mean a strut is worn. Before you replace it, rule out worn tires, wheel alignment and other front suspension parts, since they can give similar signs.
Fits
This KYB strut assembly is a direct-fit replacement for the 2012-2014 Hyundai Sonata, which takes one assembly on each side of the front axle. Front struts are normally replaced in pairs; this listing is one assembly, for the front right, and the front left is a separate part.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Compressed length: 14 in
- Extended length: 20.76 in
- Stroke length: 6.76 in
Build and materials
- Type: strut, mount and coil spring assembly
- Coil spring: high carbon steel
- Condition: New
- Country of origin: United States
In the box
One front right strut assembly with the strut, mount, coil spring, bump stop, internal rebound bumper and boot.
Installation notes
- Arrives pre-assembled, with the fitment engineered for professional results.
Frequently Asked Questions
Is the KYB SR4614 strut assembly the right one for the 2012-2014 Hyundai Sonata?
Yes. KYB SR4614 is the front right strut assembly for the 2012-2014 Hyundai Sonata, and the front left side takes its own separate part.
What comes with this KYB complete strut assembly?
The KYB SR4614 includes the strut, mount, coil spring, bump stop, internal rebound bumper and boot, all pre-assembled as one unit.
How long is this KYB front strut assembly compressed and extended?
It measures 14 inches compressed and 20.76 inches extended, with a 6.76-inch stroke.
Do KYB loaded struts like this one use an Excel-G strut?
Yes. This assembly includes a KYB Excel-G strut with a stronger steel outer shell and application-specific damping valves, plus a high carbon steel coil spring.
What can I look for on a worn front strut before ordering KYB complete struts?
Fluid on the strut body, a torn boot or uneven tire wear can mean a strut is worn. If the ride or handling has changed, have it checked promptly rather than driving on it.
