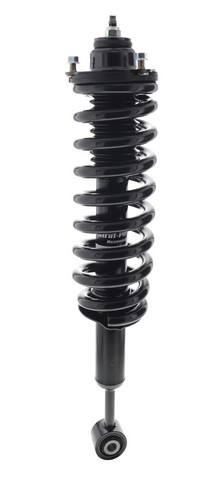

KYB SR4714 front right strut assembly for the 2017-2023 Lexus GX460 supports the vehicle's weight and acts as the steering pivot. This KYB strut assembly, also called a complete strut and coil spring assembly, comes pre-assembled with the strut, mount and spring.
- Part of the KYB Strut-Plus line, built on a KYB Excel-G strut
- Stronger steel outer shell and application-specific precision damping valves
- Application-engineered KYB spring matched to the strut to maintain proper ride height longer
- Side-specific design and components, with separate left and right part numbers
- Engineered to help vehicles with electronic safety systems such as ESC and ABS
Quick facts
- Part: KYB SR4714 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2017-2023 Lexus GX460
- Position: Front right
- Condition: New
A knock over bumps, fluid on the strut body or a front corner that sits low can mean the strut or spring is worn. Worn tires, a loose control arm or a worn sway bar link can cause similar symptoms, so find the cause before buying.
Fits
This KYB front strut assembly fits the 2017-2023 Lexus GX460 and takes one on the front right. The front left is a separate part ordered on its own, and the two sides are normally replaced together.
Specifications
Fit and size
- Position: front right
- Quantity per vehicle: 1
- Stroke length: 4.24 in
- Compressed length: 17.57 in
- Extended length: 21.81 in
Build and materials
- Coil spring: high carbon steel
- Internal rebound bumper: yes
- Condition: new
- Country of origin: Taiwan
In the box
One front right strut assembly with strut, mount, coil spring, bump stop, internal rebound bumper and boot.
