Cylinder Head Gasket for 1990-1999 Chevrolet K1500 & More - MAHLE 54052

$38.99

MAHLE Engine Cylinder Head Gasket 54052 - view 2

Part number: 54052

UPC: 639789135544

Condition: New

Weight: 0.56 LBS

Item Package Quantity: 1

$38.99

Current Stock: 4

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

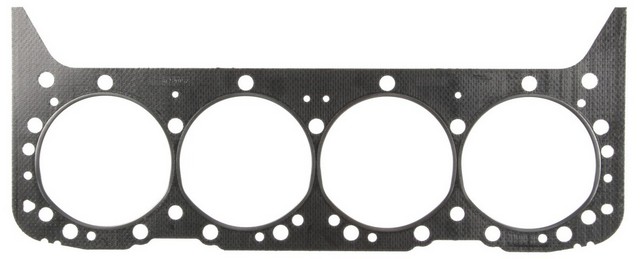

MAHLE Engine Cylinder Head Gasket P/N:54052

$38.99

Description

Seal the critical joint between the cylinder head and engine block with the MAHLE Cylinder Head Gasket 54052. This head gasket contains combustion pressure and keeps the coolant and oil passages separated where the head meets the block. It's a direct-fit replacement for many vehicles, among them the 1988-1999 Chevrolet C1500 5.7L and the 1958-1969 Chevrolet Impala 4.6L / 5.3L / 5.7L. See the "Vehicles it fits" section for the full application list and engine codes (V6-5.0L, V6-5.7L, V8-4.6L, V8-4.9L, V8-5.0L, V8-5.3L, V8-5.4L, V8-5.7L).

Composite, graphite construction for the sealing interface between head and block.
Sized to spec: 0.04 in (1.07 mm) thick, matched to a 4.13 in (104.78 mm) cylinder bore.
OEM Standard grade; country of origin: United States.
No gasket sealant included; MAHLE recommends new cylinder head bolts — these are torque-to-yield, so consult the vehicle service information for the correct fasteners and torque procedure.

The listed applications call for two gaskets (Quantity Per Application: 2); each package contains one, so order accordingly. If a failed head gasket is the cause of coolant-oil mixing, white exhaust smoke, overheating, or lost compression, this replaces it — diagnose the cause before installing.

Interchange: 7733 PT-2
7733PT2 · 14088948

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

7733 PT-2, 14088948

Buyer's Q&A

Frequently Asked Questions

What does the MAHLE 54052 head gasket do?

It seals the joint between the cylinder head and engine block, containing combustion pressure and keeping the coolant and oil passages separated.

Is this engine cylinder head gasket a direct fit for my vehicle?

It's a direct-fit replacement for many vehicles, including the 1988-1999 Chevrolet C1500 5.7L. Check the "Vehicles it fits" section for your exact year, make, model, and engine code before ordering.

How many gaskets do I need?

The listed applications use two (Quantity Per Application: 2). Each package contains one gasket, so order the quantity your engine requires.

Does it come with sealant or head bolts?

No. Gasket sealant is not included, and MAHLE recommends replacing the cylinder head bolts. They are torque-to-yield, so follow the service information for correct fasteners and torque.

What are the gasket's specs?

Composite, graphite construction, 0.04 in (1.07 mm) thick, sized for a 4.13 in (104.78 mm) cylinder bore. OEM Standard grade, made in the United States.
