Engine Piston for 2011-2016 Ford F-250 Super Duty & More - MAHLE 224-3852WR

$1,524.99
MAHLE Engine Piston Set 2243852WR
MAHLE Engine Piston Set 2243852WR

Vehicles this part fits
    Part number: 2243852WR
    UPC: 027067003508
    Condition: New
    Weight: 10.53 LBS
    Pack of 8
    $1,524.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

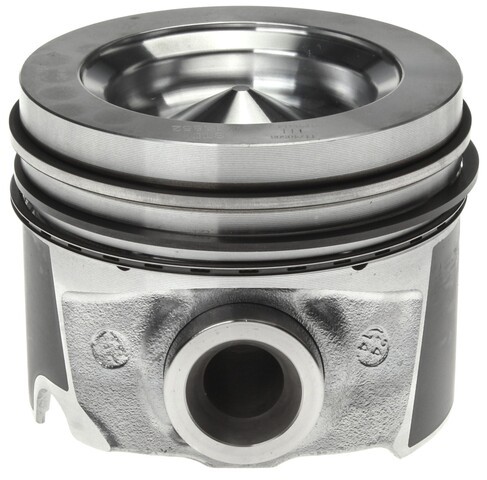

    MAHLE Engine Piston Set P/N:224-3852WR (Pack of 8)
    MAHLE Engine Piston Set P/N:224-3852WR (Pack of 8)
    $1,524.99
    $1,524.99

    MAHLE 224-3852WR engine piston for the 2011-2016 Ford F-250 Super Duty V8 6.7L and other vehicles carries combustion pressure from the cylinder down to the connecting rod.

    • Compensated ring grooves to assure proper ring loading and oil control
    • Expansion controlled design for small fitting clearances that reduce engine noise, wear and emissions
    • Hypereutectic piston material
    • Bowl-type piston head

    Quick facts

    • Part: MAHLE 224-3852WR engine piston
    • Fits: 2011-2016 Ford F-250 Super Duty V8 6.7L and other vehicles
    • Material: Hypereutectic
    • Condition: New

    Oil burning, an engine knock or low compression can mean a piston is worn, but worn piston rings and a worn cylinder bore are two other places those signs can start, so track down the source before buying. If a worn piston is the cause, this set replaces it.

    Fits

    The vehicles it fits include the 2011-2016 Ford F-250 Super Duty V8 6.7L, the 2011-2016 Ford F-350 Super Duty V8 6.7L and the 2011-2016 Ford F-450 Super Duty V8 6.7L. If your vehicle is not named here, look up its year and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Quantity per vehicle: 8
    • Piston pin outside diameter: 34.00 mm
    • Second compression ring thickness: 2.00 mm
    • Oil ring thickness: 2.50 mm
    • Oversized: No

    Build and materials

    • Piston head type: Bowl
    • Piston material: Hypereutectic
    • Condition: New
    • Country of origin: Canada

    In the box

    This listing is one engine piston set, and these vehicles take eight pistons.

    Frequently Asked Questions

    Is the MAHLE 224-3852WR piston right for a 2011-2016 Ford F-250 Super Duty V8 6.7L?

    Yes. MAHLE 224-3852WR fits the 2011-2016 Ford F-250 Super Duty V8 6.7L. For another vehicle, look up its year and engine in the "Vehicles it fits" section of this page.

    What head type and material does this MAHLE piston have?

    MAHLE 224-3852WR has a bowl piston head and is made of hypereutectic material.

    What is the piston pin diameter on this engine piston set?

    The piston pin outside diameter is 34.00 mm. The second compression ring is 2.00 mm thick and the oil ring is 2.50 mm thick.

    How do the ring grooves on these pistons work?

    The ring grooves are compensated so the rings load properly and control oil. The expansion controlled design permits tight fitting clearances, which reduces engine noise and wear.

    What engine symptoms can go with a worn piston like the MAHLE 224-3852WR?

    Oil burning, a knock from the engine and low compression can go with a worn piston. A shop can measure compression and inspect the cylinders.
