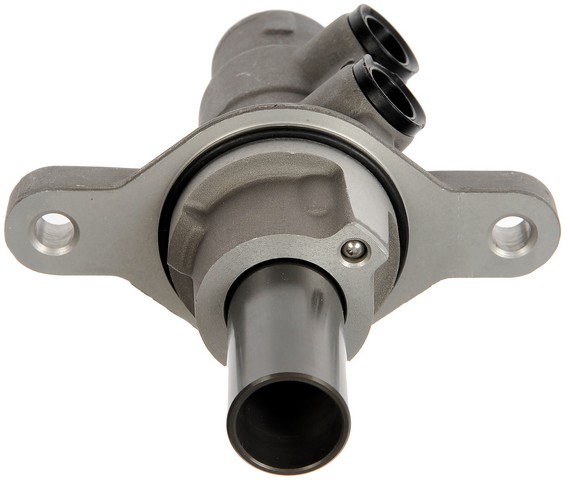

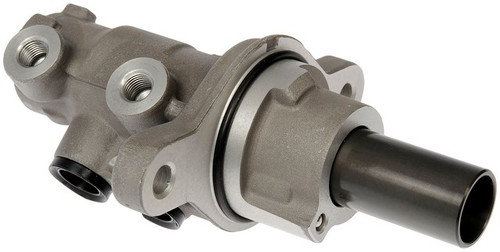

Dorman M631050 brake master cylinder for the 2015-2020 Jeep Renegade and other vehicles turns pedal force into hydraulic pressure for the brakes.
- Aluminum cylinder housing with two outlets
- EPDM rubber components for resistance to glycol-based brake fluid
- Made entirely of new materials
- Made to meet rigorous SAE International standards
Quick facts
- Part: Dorman M631050 brake master cylinder
- Fits: the 2015-2020 Jeep Renegade and other vehicles
- Material: Aluminum
- Condition: New
A soft or sinking brake pedal, fluid around the cylinder or a brake warning light can mean the master cylinder is wearing out. Before you replace it, rule out leaks at the brake lines, calipers or wheel cylinders, because a new master cylinder will not cure a leak somewhere else. A car takes one master cylinder, and this listing is one.
Fits
This master cylinder is a direct-fit replacement for the 2015-2020 Jeep Renegade and the 2017-2018 Fiat 500X. Its housing is constructed to match the casting material of the original part for similar performance.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting hole quantity: 2
- Number of outlets: 2
- Bore diameter: 0.9375 in
- Rearward outlet size: M10x1.0
- Secondary outlet thread diameter: M10x1.0
- Primary outlet thread pitch: 1 mm
Build and materials
- Housing material: Aluminum
- Rubber components: EPDM compound
- Condition: New
- Country of origin: China
In the box
One master cylinder. The mounting hardware, mounting bracket, reservoir, cap, sensor, bleeder hoses, push rod and brake booster are not included, and the old mounting hardware may not be reusable, so plan on new pieces.
Interchange: 68263298AA · NM4316 · MC391591
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
68263298AA, NM4316, MC391591
Frequently Asked Questions
Does the Dorman master cylinder fit a 2015-2020 Jeep Renegade?
Yes. Dorman M631050 fits the 2015-2020 Jeep Renegade and the 2017-2018 Fiat 500X.
What does the Dorman brake master cylinder come with?
The Dorman M631050 package holds the master cylinder only. Mounting hardware, bracket, reservoir, cap, sensor, bleeder hoses, push rod and brake booster are not included.
What size are the outlets on this brake master cylinder?
The rearward outlet is M10x1.0, the secondary outlet thread diameter is M10x1.0 and the primary outlet thread pitch is 1 mm. The cylinder has two outlets and a 0.9375 in bore.
What are the rubber parts in this master cylinder made of?
All rubber components are made of an EPDM compound that resists glycol-based brake fluid. The cylinder housing is aluminum.
Is the Dorman M631050 built to SAE standards?
Yes. Dorman M631050 is made to meet rigorous SAE International standards, and it is made entirely of new materials.
