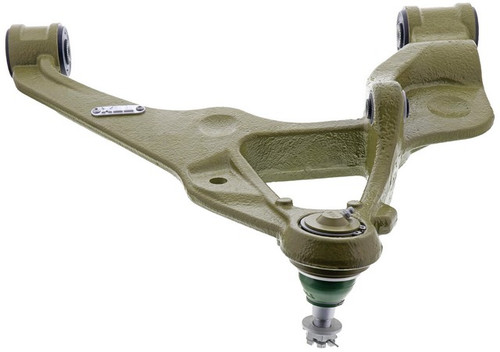

Mevotech TTX CTXMS501179 front left lower control arm with ball joint for the 2011-2019 Chevrolet Silverado 2500 HD and other vehicles links the wheel to the frame and lets it pivot. This control arm and ball joint assembly replaces the arm, ball joint and bushings in one piece.
- Mevotech TTX line made for high-usage commercial and passenger vehicles, SUVs, fleets and working trucks
- Patented sintered bearings, with sintered metal as the bearing material
- Integri-Boot design built into the ball joint assembly to keep out moisture and contaminants
- Rubber bushings with knurling that secures the control arm bushing to the sub-frame
- Application-specific ball stud system with a larger sphere
- Repel-TEK surface treatment to prevent rust build-up
Quick facts
- Part: Mevotech TTX CTXMS501179 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2011-2019 Chevrolet Silverado 2500 HD and other vehicles
- Position: Front left lower
- Material: Steel
- Condition: New
A clunk over bumps, uneven tire wear or loose steering can mean the arm, ball joint or bushings are worn. These signs alone do not prove this part is the problem; a worn shock or strut can cause a similar clunk. Front lower arms are normally replaced as a pair, and this listing is one; the front right is ordered separately.
Fits
The 2011-2019 Chevrolet Silverado 2500 HD, the 2011-2019 Chevrolet Silverado 3500 HD and the 2011-2019 GMC Sierra 2500 HD take this front left lower control arm, along with other vehicles, and each takes one on that side.
Specifications
Fit and size
- Position: Front left lower
- Quantity per vehicle: 1 (front left)
- Maximum width: 23.25 in
- Maximum length: 20.00 in
- Ball joint mounting type: Press in
- Ball joint stud type: Threaded
- Adjustable: No
Build and materials
- Control arm material: Steel
- Bushing material: Rubber (bushings included)
- Bearing material: Sintered metal
- Surface treatment: Repel-TEK
- Pre-greased: Yes
- Greaseable: Yes, grease fitting included
- Condition: New
- Country of origin: China
In the box
One control arm with ball joint and bushings, plus mounting hardware.
Installation notes

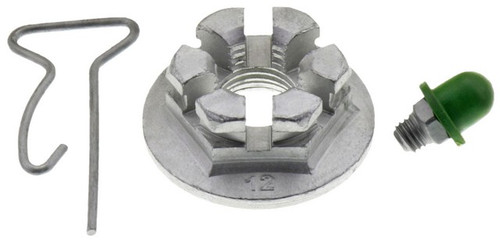

- Secure the ball joint to the vehicle with the part-specific slotted castle nut and snap cotter pin provided.
- The included grease fitting is a 180 degree SAE fitting for servicing.
- Fasteners come with pre-applied nylok thread adhesive.
Interchange: 820-497292B · 524-073
19422127 · 22849591 · 23207777 · 25803378 · TC427 · TC7427 · CB91343 · CB91343PR · CA16496 · GCA16496 · 22803674 · RK623128 · X07CJ0359 · CP5157
This part cross-references / interchanges with the following part numbers:
19422127, 820-497292B, 22849591, 23207777, 25803378, TC427, TC7427, 524-073, CB91343, CB91343PR, CA16496, GCA16496, 22803674, RK623128, CTXMS501179, X07CJ0359, CP5157
