Engine Piston for 2005-2008 Dodge Ram 2500 & More - MAHLE 224-3673WR

$1,154.99

MAHLE Engine Piston Set 224-3673WR - view 2

MAHLE Engine Piston Set 224-3673WR - view 3

MAHLE Engine Piston Set 224-3673WR - view 4

MAHLE Engine Piston Set 224-3673WR - view 5

MAHLE Engine Piston Set 224-3673WR - view 6

MAHLE Engine Piston Set 224-3673WR - view 7

Part number: 224-3673WR

GTIN: 00027067897800

Condition: New

Weight: 10.53 LBS

Pack of 6

$1,154.99

Current Stock: 18

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

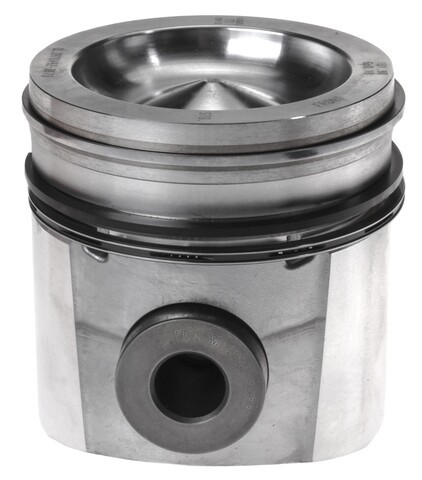

MAHLE Engine Piston Set P/N:224-3673WR (Pack of 6)

$1,154.99

Description

MAHLE 224-3673WR engine piston for the 2005-2008 Dodge Ram 2500 6-cylinder 5.9L and other vehicles turns combustion pressure into force on the connecting rod.

Compensated ring grooves for proper ring loading and oil control
Expansion-controlled design for small fitting clearances, to reduce engine noise, wear and emissions and improve oil control
Aluminum piston with a bowl-type head
MAHLE pistons are offered ready for installation with mounted piston rings, with pin and clips included for the engine builder

Quick facts

Part: MAHLE 224-3673WR engine piston
Fits: 2005-2008 Dodge Ram 2500 6-cylinder 5.9L and other vehicles
Material: Aluminum
Condition: New

A worn piston can show up as knocking when the engine is cold, blue smoke from the exhaust or rising oil use. Worn rings, valve seals, a scored cylinder bore or a head gasket leak can cause similar signs, so find the cause before you buy pistons.

Fits

It fits the 2005-2008 Dodge Ram 2500 6-cylinder 5.9L and the 2005-2007 Dodge Ram 3500 6-cylinder 5.9L, and the engine in either takes six.

Specifications

Fit and size

Quantity per vehicle: 6
Piston pin outside diameter: 40.00 mm
Second compression ring thickness: 2.38 mm
Oil ring thickness: 4.00 mm
Oversized: No

Build and materials

Piston head type: Bowl
Piston material: Aluminum
Condition: New
Country of origin: Turkey

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Buyer's Q&A

Frequently Asked Questions

Is the MAHLE 224-3673WR piston the right one for a 2005-2008 Dodge Ram 2500 6-cylinder 5.9L?

Yes, MAHLE 224-3673WR fits the 2005-2008 Dodge Ram 2500 6-cylinder 5.9L, and it also fits the 2005-2007 Dodge Ram 3500 6-cylinder 5.9L.

Do these MAHLE pistons have compensated ring grooves?

Yes, the ring grooves are compensated to assure proper ring loading and oil control, and the expansion-controlled design allows small fitting clearances.

What is the piston pin outside diameter on the MAHLE 224-3673WR?

The piston pin outside diameter on MAHLE 224-3673WR is 40.00 mm. The second compression ring is 2.38 mm thick and the oil ring is 4.00 mm thick.

What is the head type and material of this engine piston?

The piston head type is bowl, and the piston material is aluminum.

What can a worn engine piston sound or look like?

Knocking when the engine is cold, blue exhaust smoke or higher oil use can be signs of piston or ring wear. A shop can confirm the cause with a compression or leak-down test.
