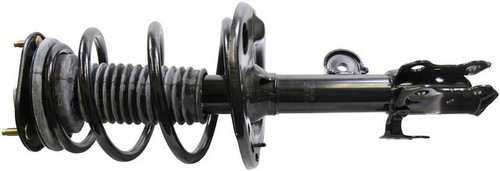

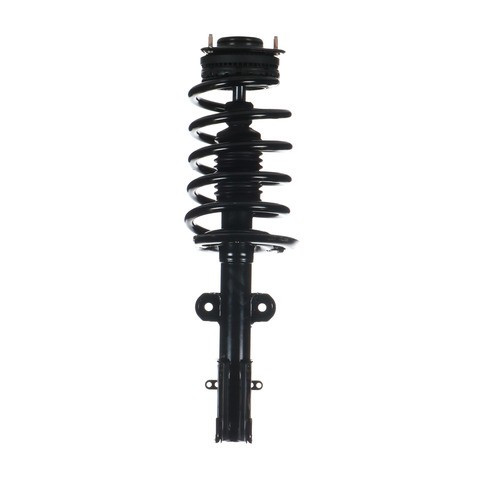

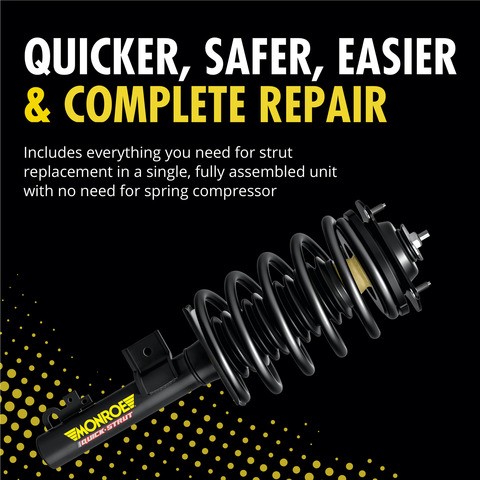

Monroe 172953 front right strut assembly for the 2012-2016 Fiat 500 holds the coil spring and damps suspension movement. This Monroe quick strut assembly, a complete strut and coil spring assembly, needs no spring compressor.
- Strut, coil spring, upper strut mount and insulators come preassembled in one Quick-Strut unit
- Application-specific coil spring, mount and strut designs tuned for ride and handling
- Coil spring calibrated to restore ride height and support the vehicle's weight
- Gas-charged strut that reduces body sway, vibration and road harshness

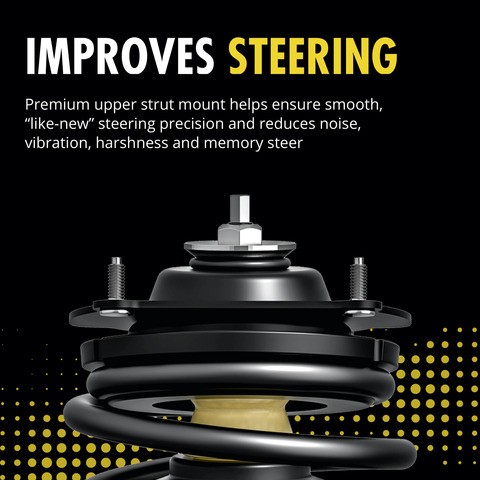

- Upper strut mount helps prevent noise, vibration, harshness and memory steer
- Protective coating resists rust and corrosion, with salt spray testing
Quick facts
- Part: Monroe 172953 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2012-2016 Fiat 500
- Position: Front right
- Condition: New
Worn tires, a loose tie rod end or a tired sway bar link can be behind a bouncy ride, extra body sway or a clunk over bumps, and so can a worn strut. Find the cause before buying.
Fits
Front struts are normally replaced as a pair. This listing is one front right strut assembly for the 2012-2016 Fiat 500, which takes one per side; the front left is a separate part.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Body length: 13.43 in
- Compressed length: 13.58 in
- Extended length: 21.22 in
- Travel length: 7.64 in
Build and materials
- Gas charged: Yes
- Suspension type: Passive
- Ride height and compression: not adjustable
- Condition: New
- Warranty: Monroe Limited Lifetime Warranty
- Country of origin: China
In the box
One strut assembly with the coil spring, strut mount, coil spring insulator, strut mount insulator and mounting hardware.
Interchange: 33FT1100 · 92130154
This part cross-references / interchanges with the following part numbers:
33FT1100, 172953, 92130154
Frequently Asked Questions
Is this Monroe strut assembly 172953 the right one for the front right of the 2012-2016 Fiat 500?
Yes, Monroe 172953 is the front right strut assembly for the 2012-2016 Fiat 500; the front left takes a separate part.
Does the Monroe quick strut strut and coil spring assembly include the upper mount and hardware?
Yes. Monroe 172953 comes with the coil spring, strut mount, coil spring insulator, strut mount insulator and mounting hardware.
What are the compressed and extended lengths of the Monroe complete strut assembly?
Monroe 172953 measures 13.58 in compressed and 21.22 in extended, with 7.64 in of travel and a 13.43 in body.
Which signs can show a gas-charged strut assembly is wearing out?
Oil on the strut body, extra body sway or a clunk over bumps can mean the strut is wearing out. A shop can confirm it.
Does the Monroe 172953 have a rust-resistant coating?
Yes. This strut assembly has a protective coating that resists rust and corrosion, and it is salt spray tested.
