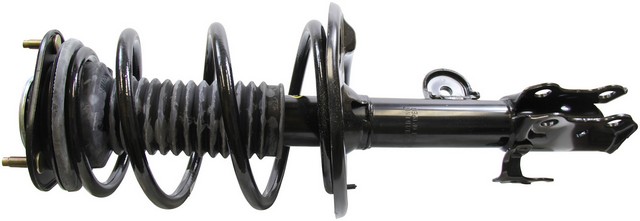

Monroe 172275 front right strut assembly for the 2006-2012 Toyota RAV4 supports the vehicle's weight and damps road motion at that corner. This Monroe Quick-Strut is a complete strut and coil spring assembly with the spring and mount already fitted.
- Quick-Strut design: strut, coil spring, upper mount and insulators in one fully assembled unit
- Coil spring engineered to restore ride height and support the vehicle's weight
- Vehicle-specific spring, mount and strut designs matched to the application
- Reduces body sway, vibration and road harshness before it reaches the passenger cabin
- Upper strut mount helps keep steering precise and limits noise, vibration, harshness and memory steer
- Protective coating resists rust and corrosion, and salt spray testing checks it against the elements
Quick facts
- Part: Monroe 172275 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2006-2012 Toyota RAV4
- Position: Front right
- Condition: New
A bouncy ride, nose-dive when braking or oil streaking down the strut body can mean the strut is worn. With the engine off, look the body over for fluid and the mount for cracks to find the cause; if the strut is at fault, this assembly replaces the strut, spring and upper mount together.
Fits
It fits the 2006-2012 Toyota RAV4, with one strut on each side of the front axle. This listing is the front right only; the front left is a separate part, ordered separately, and both sides are normally replaced together.
Specifications
Fit and size
- Position: front right
- Quantity per vehicle: 1 for this side
- Compressed length: 15.12 in (384 mm)
- Extended length: 20.98 in (532.9 mm)
- Travel length: 5.86 in
- Body length: 14.17 in
Build and materials
- Gas charged strut, passive suspension
- Ride height and compression: not adjustable
- Condition: new
- Warranty: Monroe Limited Lifetime Warranty
- Country of origin: China
In the box
One strut assembly with its coil spring, strut mount, strut mount insulator, coil spring insulator and mounting hardware.
Installation notes
- No spring compressor is needed.
Frequently Asked Questions
Is this the right part for a 2006-2012 Toyota RAV4 strut replacement?
Yes. Monroe 172275 is the front right strut assembly for the 2006-2012 Toyota RAV4. The front left side is a separate part.
Does the Monroe Quick-Strut assembly come with the coil spring and upper mount?
Yes. Monroe 172275 includes the coil spring, strut mount, both insulators and mounting hardware in one fully assembled unit.
Is this Monroe strut assembly gas charged, and can it be adjusted?
The strut is gas charged and sits in a passive suspension. Neither ride height nor compression is adjustable.
Does this Monroe suspension strut and coil spring assembly need a spring compressor?
No. It arrives fully assembled, so no spring compressor is needed to fit it.
What does a leaking front strut look like?
Oily fluid on the strut body or a damp, dirty film around it can show the strut has leaked. A shop can check further, since a bounce or clunk can have other causes.
