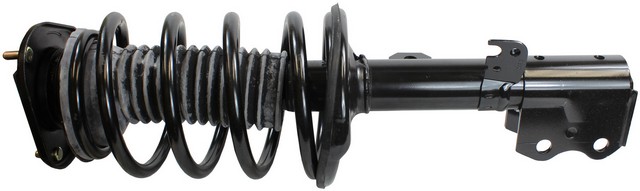

Monroe 172357 front right strut assembly for the 2004-2009 Toyota Prius damps suspension movement at the front right wheel. Also called a complete strut and coil spring assembly, this Monroe quick strut comes with the coil spring and upper mount preassembled.
- Part of the Monroe Quick-Strut line, with coil spring, mount and strut designs specific to the application
- Coil spring calibrated to restore ride height and support the vehicle's weight
- Upper strut mount helps keep steering precise and limits noise, vibration, harshness and memory steer
- Reduces body sway, vibration and road harshness before they reach the passenger cabin
- Protective coating resists rust and corrosion, and salt spray testing backs it
- Steel construction with a welded design for structural strength
Quick facts
- Part: Monroe 172357 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2004-2009 Toyota Prius
- Position: Front right
- Material: Steel
- Condition: New
A worn strut can show up as a bouncy ride, a clunk over bumps or fluid on the strut body. These signs alone do not prove the strut is the problem, since uneven or worn tires can cause some of them too.
Fits
It is a direct-fit replacement for the 2004-2009 Toyota Prius. This listing is one strut assembly for the front right; the front right position takes one, the front left is a separate part, and both sides are normally replaced together.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1 on this side
- Compressed length: 354 mm (13.938 in)
- Extended length: 520.7 mm (20.5 in)
- Travel length: 6.56 in
- Body length: 13.438 in
Build and materials
- Type: gas-charged, passive suspension, not adjustable
- Includes coil spring, strut mount, coil spring insulator and strut mount insulator
- Condition: New
- Warranty: Monroe limited lifetime warranty
- Country of origin: China
- Assembled in Paragould, Arkansas
In the box
One front right strut assembly with the coil spring, strut mount, coil spring insulator, strut mount insulator and mounting hardware.
Installation notes
- Arrives as one fully assembled unit, so no spring compressor is needed.
Interchange: 2701524530 · 18816091 · LS3484101R · 1331620R · G57405 · SR4223 · 33TY1120 · LS57405 · 816091 · 815171 · 92130074 · 55S11102 · 4851049495 · 4851049505 · 4851080274 · 11102
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Is the Monroe quick strut assembly 172357 the right one for the front right of a 2004-2009 Toyota Prius?
Yes. Monroe 172357 is the front right strut assembly for the 2004-2009 Toyota Prius. The front left side is a separate part.
What comes with the Monroe complete strut assembly 172357?
Monroe 172357 includes the coil spring, strut mount, coil spring insulator, strut mount insulator and mounting hardware, all in one unit.
Does this Monroe strut assembly need a spring compressor?
No. The coil spring comes preassembled with the strut and upper mount, so no spring compressor is needed.
Is this Monroe quick strut strut and coil spring assembly gas charged?
Yes. It is gas charged and passive, not adjustable, with a compressed length of 354 mm and an extended length of 520.7 mm.
Can fluid on the strut body or a clunk over bumps mean the front right strut is worn?
Yes, either one can mean the strut is worn. A bouncy ride is another sign. A shop can road test the car to confirm.
