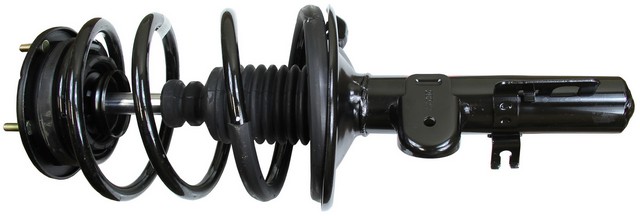

Monroe Shocks & Struts 172614 front left strut assembly for the 2005-2007 Ford Five Hundred and other vehicles damps body sway and supports the vehicle's weight. This complete strut and coil spring assembly needs no spring compressor.
- Quick-Strut design with the upper strut mount, coil spring and strut preassembled in one unit
- Application-specific coil spring engineered to restore ride height and support vehicle weight
- Strut action that reduces body sway and road vibration before they reach the cabin
- Upper strut mount helps keep steering precise and reduces noise and memory steer
- Protective coating resists rust and corrosion, and the part is salt spray tested
Quick facts
- Part: Monroe Shocks & Struts 172614 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2005-2007 Ford Five Hundred and other vehicles
- Position: Front left
- Material: Steel
- Condition: New
Oil on the strut body, a bouncy ride or a clunk over bumps can mean this strut assembly is worn, though a worn sway bar end link or a loose tie rod end can be behind similar noises and handling changes.
Fits
This strut assembly fits the 2005-2007 Ford Five Hundred and the 2005-2007 Mercury Montego. The listing is one side of the front axle, and the other side is normally done at the same time.
Specifications
Fit and size
- Position: front left
- Quantity per application: 1
- Body length: 13.6 in
- Compressed length: 11.11 in (282.2 mm)
- Extended length: 16.99 in (431.5 mm)
- Travel length: 5.88 in
Build and materials
- Type: strut and coil spring assembly, gas charged
- Suspension: passive, with no adjustable compression or ride height
- Material: steel
- Condition: new
- Warranty: Monroe Limited Lifetime Warranty
In the box
One strut assembly that includes the coil spring, upper strut mount, coil spring insulator and strut mount insulator, plus mounting hardware. The front left position takes one, and the front right is ordered separately.
Interchange: LS3486061L · 33FD1140
Frequently Asked Questions
Is the Monroe 172614 front left strut assembly right for the 2005-2007 Mercury Montego?
Yes. Monroe Shocks & Struts 172614 fits the 2005-2007 Mercury Montego and the 2005-2007 Ford Five Hundred, in the front left position.
Does the Monroe 172614 come with the coil spring and upper mount?
Yes. This strut assembly arrives with the coil spring, upper strut mount, coil spring insulator, strut mount insulator and mounting hardware already included.
Is the Monroe 172614 strut gas charged?
Yes. This strut is gas charged and has a passive design, with no adjustable compression and no adjustable ride height.
Do I need a spring compressor to install the Monroe 172614 strut?
No. The coil spring, upper mount and strut come preassembled in one unit, so this assembly goes in without a spring compressor.
Is 33FD1140 an interchange number for the Monroe 172614 strut assembly?
Yes. 33FD1140 is a cross-reference for Monroe Shocks & Struts 172614, along with LS3486061L.
