Monroe Shocks & Struts 172740 front left strut assembly for the 2005-2006 Toyota Avalon replaces the strut, coil spring and upper mount as one unit. This complete strut and coil spring assembly has a coil spring calibrated to the OE design.
Fluid leaking down the strut body, a bouncy ride, a clunk over bumps or uneven tire wear can mean a worn strut. Worn sway bar links, ball joints or tires can be behind a clunk or uneven tire wear as well, so find the source before you buy.
This listing is one assembly, and the 2005-2006 Toyota Avalon takes one at the front left. The front right is a separate part, and both sides are normally replaced together.
This front left assembly is a direct-fit replacement for the 2005-2006 Toyota Avalon.
Fit and size
Build and materials

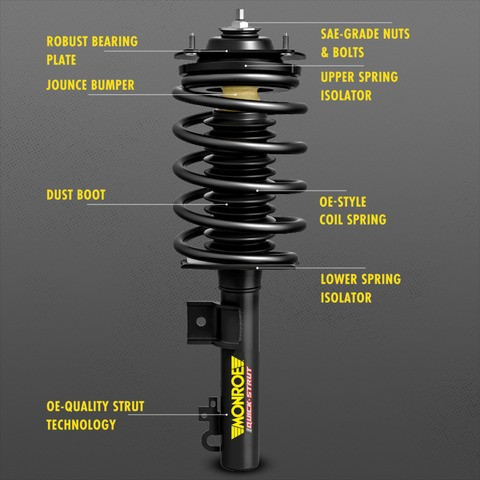

One front left strut assembly with the coil spring, upper strut mount, coil spring insulators, strut mount insulators and mounting hardware.
Interchange: LS3484021L · 34TY1125
This part cross-references / interchanges with the following part numbers:
Does the Monroe Shocks & Struts 172740 fit the 2005-2006 Toyota Avalon?
Yes. Monroe Shocks & Struts 172740 is a front left strut assembly for the 2005-2006 Toyota Avalon. The front right side is a separate part.
Does the 172740 strut assembly come with the coil spring and upper mount?
Yes. Monroe 172740 includes the coil spring, upper strut mount, coil spring insulators, strut mount insulators and mounting hardware in one assembled unit.
What are the compressed and extended lengths of this Monroe strut assembly?
Compressed length is 14.515 in (368.7 mm) and extended length is 21.496 in (546 mm). That gives 6.981 in of travel.
Do I need a spring compressor to install this Monroe Quick-Strut assembly?
No. The strut, coil spring and mount come fully assembled in a single unit, so no spring compressor is needed.
Is this front left strut assembly gas charged or adjustable?
This strut is gas charged and passive. It has no adjustable compression and no adjustable ride height.
