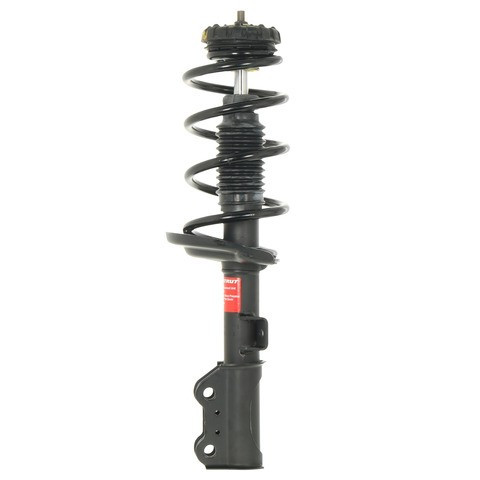

Monroe Shocks & Struts 172909 front strut assembly for the 2010-2016 Cadillac SRX supports the vehicle's weight and controls body movement over bumps. It is fit checked and ride tested for this vehicle.
- Quick-Strut line: strut, coil spring and upper mount arrive fully assembled, so no spring compressor is needed
- Application-specific coil spring engineered to restore ride height and support the vehicle's weight
- Coil spring, mount and strut designs matched to the ride and handling of each vehicle profile
- Reduces body sway, vibration and road harshness before it reaches the passenger cabin
- Upper strut mount supports steering precision and limits noise, vibration, harshness and memory steer
- Protective coating resists rust and corrosion, and salt spray testing checks it against the elements
Quick facts
- Part: Monroe Shocks & Struts 172909 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2010-2016 Cadillac SRX
- Position: Front
- Condition: New
A bouncy ride, a clunk over bumps or uneven tire wear can be signs of a worn strut. Worn sway bar links, control arm bushings or tires can be behind these signs too, so find the cause before buying. As a complete strut and coil spring assembly, it replaces the strut, spring and mount in one job.
Fits
This strut assembly fits the 2010-2016 Cadillac SRX. This listing is one piece, and both sides are normally replaced together; the SRX takes one on each side of the front axle.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Body length: 16.031 in
- Compressed length: 12.28 in (311.9 mm)
- Extended length: 19.05 in (483.9 mm)
- Travel length: 6.77 in
- Upper mount code: 172
Build and materials
- Type: passive suspension
- Adjustable compression: No
- Adjustable ride height: No
- Coating: protective rust-resistant coating
- Condition: New
- Assembled in: Paragould, Arkansas, United States
- Warranty: Monroe Limited Lifetime Warranty and Feel the Difference Guarantee
In the box
One strut assembly with the coil spring, upper strut mount, coil spring insulators and strut mount insulators included. Mounting hardware is not included, and the old fasteners may not be reusable, so plan on new ones.
Interchange: 20888665 · 22945153 · 18920058 · LS5496271B · 34GM1200 · NS172909 · 92141087
This part cross-references / interchanges with the following part numbers:
20888665, 22945153, 18920058, LS5496271B, 34GM1200, 172909, NS172909, 92141087
Frequently Asked Questions
Does the Monroe Quick-Strut 172909 fit the 2010-2016 Cadillac SRX?
Yes. Monroe Shocks & Struts 172909 is a front strut assembly for the 2010-2016 Cadillac SRX. This listing is one strut, and the car takes one on each side of the axle.
Do I need a spring compressor with the Monroe 172909 front strut assembly?
No. Monroe 172909 comes with the strut, coil spring and upper mount preassembled in one unit, so no spring compressor is needed. Mounting hardware is not included.
How long is this front strut assembly compressed and extended?
Compressed length is 12.28 in (311.9 mm) and extended length is 19.05 in (483.9 mm), which gives 6.77 in of travel.
How can I tell if my front struts are worn?
A bouncy ride, a clunk over bumps or nose dive when braking can be signs of a worn front strut. A shop can inspect the suspension and road-test the car to confirm.
What warranty comes with the Monroe 172909 strut assembly?
Monroe's Limited Lifetime Warranty and its Feel the Difference Guarantee come with Monroe Shocks & Struts 172909.
