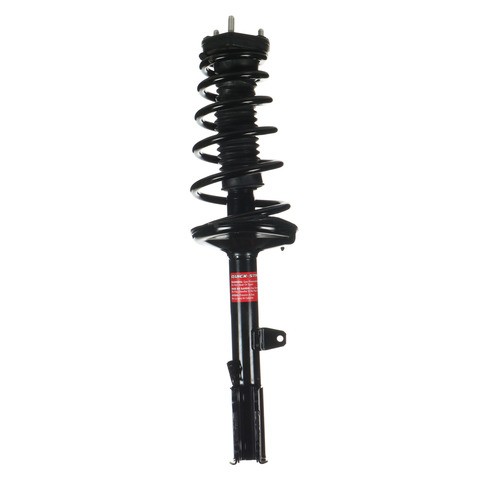

Monroe 172967 rear left strut assembly for the 2009-2012 Toyota Venza is a Monroe Quick-Strut that replaces the strut and coil spring as one unit. Also called a complete strut and coil spring assembly, it is built for this vehicle and is fit checked and ride tested.
- Monroe Quick-Strut line with a coil spring, upper mount and strut matched to the vehicle's ride and handling
- Coil spring calibrated to restore ride height and support the vehicle's weight
- Strut assembly that reduces body sway, vibration and road harshness before it reaches the cabin
- Upper strut mount that helps keep steering precise and limits noise, vibration, harshness and memory steer
- Protective coating that resists rust and corrosion, with salt spray testing
Quick facts
- Part: Monroe 172967 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2009-2012 Toyota Venza
- Position: Rear left
- Condition: New
A leaking strut body, a bouncy ride or a clunk over bumps from the rear left corner can mean this strut assembly is worn, though a worn sway bar link or a tired rear tire can be behind some of them. This listing is one piece; the rear right is a separate part, and both sides are normally replaced together.
Fits
This strut assembly fits the rear left position on the 2009-2012 Toyota Venza.
Specifications
Fit and size
- Position: Rear left
- Quantity per vehicle: 1 for this side
- Extended length: 26.38 in (670.1 mm)
- Compressed length: 18.29 in (464.6 mm)
- Travel length: 8.09 in
- Body length: 18.736 in
Build and materials
- Type: gas-charged strut with coil spring, passive suspension
- Adjustable compression and ride height: No
- Condition: New
- Warranty: Monroe Limited Lifetime Warranty
- Country of origin: China
In the box
One strut assembly with the coil spring, upper strut mount, strut mount insulator, coil spring insulator and mounting hardware. The rear left takes one.
Installation notes
- Arrives fully assembled, so no spring compressor is needed.
Interchange: LS5494022L · 92142021
This part cross-references / interchanges with the following part numbers:
LS5494022L, 172967, 92142021
Frequently Asked Questions
Is the Monroe strut assembly 172967 the right strut for the rear left of a 2009-2012 Toyota Venza?
Yes. Monroe 172967 is the rear left strut assembly for the 2009-2012 Toyota Venza. The rear right side takes its own strut.
What comes with the Monroe complete strut assembly?
One strut with the coil spring, upper strut mount, strut mount insulator, coil spring insulator and mounting hardware, all in a single assembled unit.
What are the extended and compressed lengths of the Monroe Quick-Strut strut and coil spring assembly 172967?
Monroe 172967 measures 26.38 in (670.1 mm) extended and 18.29 in (464.6 mm) compressed, with 8.09 in of travel.
How do I tell if a Monroe quick strut assembly on the rear left is worn?
Fluid on the strut body, a bouncy ride or a clunk over bumps can mean the strut is worn. Look it over with the car parked; a shop can inspect it.
Does Monroe 172967 replace LS5494022L or 92142021?
Yes. LS5494022L and 92142021 are interchange numbers for Monroe 172967, the rear left strut assembly.
