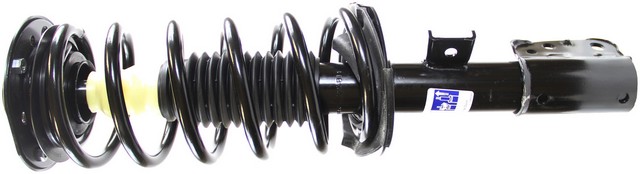

Monroe Shocks & Struts 272526 front right strut assembly for the 2010-2017 Chevrolet Equinox supports the vehicle's weight and controls ride and handling at the front right wheel.
- Quick-Strut vehicle-specific design, with the coil spring, mount and strut matched to the application
- Coil spring calibrated to restore ride height and support the vehicle's weight
- Upper strut mount helps keep steering precise and limits noise, vibration, harshness and memory steer
- Reduces body sway, vibration and road harshness before they reach the passenger cabin
- Protective coating resists rust and corrosion and is salt spray tested
Quick facts
- Part: Monroe Shocks & Struts 272526 strut assembly
- Also called: complete strut and coil spring assembly
- Fits: 2010-2017 Chevrolet Equinox
- Position: Front right
- Condition: New
A bouncy or swaying ride, clunking over bumps or fluid on the strut body can mean this assembly is worn, though a loose sway bar link or worn tires can be behind the same signs. Replace the front pair together; this listing is one assembly for the front right, and the front left is ordered separately. The front axle takes one per side.
Fits
This is a direct-fit replacement for the 2010-2017 Chevrolet Equinox.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Body length: 13.17 in
- Compressed length: 347.2 mm (13.67 in)
- Extended length: 534.2 mm (21.03 in)
- Travel length: 7.63 in
Build and materials
- Type: Gas-charged strut assembly with coil spring, passive suspension
- Adjustable compression: No
- Adjustable ride height: No
- Finish: Protective rust-resistant coating
- Condition: New
- Warranty: Monroe Limited Lifetime Warranty
- Country of origin: China
In the box
One strut assembly with the coil spring, upper strut mount, coil spring insulator, strut mount insulator and mounting hardware.
Installation notes
- Comes fully assembled, so no spring compressor is needed.
Interchange: 506758 · 2701539570 · 18818629 · 20909155 · 20909157 · 20909159 · 22872084 · LS5390631R · 1333468R · 2333392R · SR4434 · 33GM1141 · LS57198 · LS57323 · 818629 · PF11464 · 817402 · 92140501 · 92140632 · 55S11464
This part cross-references / interchanges with the following part numbers:
506758, 2701539570, 18818629, 20909155, 20909157, 20909159, 22872084, LS5390631R, 1333468R, 2333392R, SR4434, 33GM1141, LS57198, LS57323, 272526, 818629, PF11464, 817402, 92140501, 92140632, 55S11464
Frequently Asked Questions
Is the Monroe Quick-Strut 272526 right for the 2010-2017 Chevrolet Equinox?
Yes. Monroe 272526 is a front right strut assembly for the 2010-2017 Chevrolet Equinox. The front left side is a separate part.
Are the coil spring and upper mount already on the Monroe 272526?
Yes. Monroe 272526 comes with the coil spring, upper strut mount, both insulators and mounting hardware, assembled as one unit.
Can this complete strut and coil spring assembly go in without a spring compressor?
Yes. It comes fully assembled as a single unit, so a spring compressor is not needed.
How long is this front right strut assembly compressed and extended?
Compressed it measures 347.2 mm (13.67 in) and extended 534.2 mm (21.03 in), with 7.63 in of travel. The body length is 13.17 in.
Is the Monroe 272526 coated against rust?
Yes. Monroe 272526 has a protective coating that resists rust and corrosion, and it is salt spray tested.
