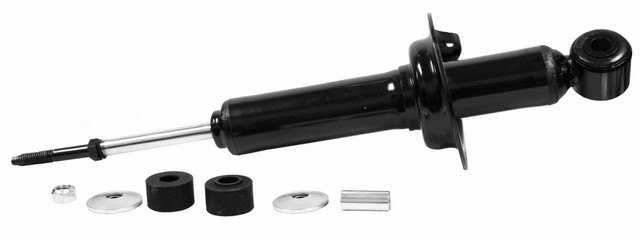

Monroe Shocks & Struts 553004 front suspension strut for the 2012-2021 Nissan NV1500 and other vehicles damps spring and wheel movement to help control the ride. It is a passive strut with an internal rebound bumper, and compression, rebound and ride height are not adjustable.
- Magnum Severe Service line, designed for high-mileage, severe-use commercial vehicles
- All-weather fluid with special additives for extreme temperatures; larger 2-3/8-in. reserve tube holds more fluid (most applications)
- 10-stage valving tuned to each vehicle, with a larger 1-3/4-in. bore for damping control (most applications)
- Shouldered bushing and bonded bushing with sleeve protect against bushing walkout; arc welds up to 360°
- PTFE-coated rod guide bearing and nitrocarburized piston rod for longer service life (most applications)
- Nitrogen gas charge keeps tire-to-road contact and reduces aeration and shock fade
Quick facts
- Part: Monroe Shocks & Struts 553004 suspension strut
- Fits: 2012-2021 Nissan NV1500 and other vehicles
- Position: Front
- Condition: New
A strut that is wearing out can show as a bouncy ride, a clunk over bumps or oil on the strut body. These signs alone do not prove the strut is the problem; a worn tire or a loose mount can feel similar. This listing is one strut, and both front sides are normally replaced together.
Fits
This front suspension strut suits the 2012-2021 Nissan NV1500, the 2012-2021 Nissan NV2500 and the 2012-2021 Nissan NV3500. Owners of other vehicles can find their own in the "Vehicles it fits" section.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Compressed length: 13.77 in (349.8 mm)
- Extended length: 17.99 in (456.9 mm)
- Travel length: 4.22 in
- Body length: 13.27 in
- Upper mount code: 107.2
Build and materials
- Type: gas-charged strut, rod extends automatically
- Condition: New
- Warranty: Monroe limited commercial warranty
- Country of origin: Viet Nam
In the box
One front suspension strut with mounting hardware; these vehicles take two. The strut mount, coil spring and dust shield are not included.
Interchange: 345948 · 5001075 · E61101PA0B · E61101PAAB · E61101PB0B · PM6001406 · 931074
This part cross-references / interchanges with the following part numbers:
345948, 5001075, 553004, E61101PA0B, E61101PAAB, E61101PB0B, PM6001406, 931074
Frequently Asked Questions
Does the Monroe 553004 strut fit the 2012-2021 Nissan NV2500?
Yes. Monroe Shocks & Struts 553004 is a front suspension strut for the 2012-2021 Nissan NV2500, and the 2012-2021 Nissan NV3500 takes it too. Other vehicles are in the "Vehicles it fits" section.
Do I need to buy a strut mount or coil spring separately with the Monroe 553004?
Yes. Monroe Shocks & Struts 553004 comes with mounting hardware, but the strut mount, coil spring and dust shield are not included. This listing is one strut.
Is this Monroe Magnum Severe Service front strut gas charged?
Yes. This front strut has a nitrogen gas charge, and the strut rod extends automatically. Compressed length is 13.77 in (349.8 mm) and extended length is 17.99 in (456.9 mm).
What are signs a Magnum Severe Service front strut is wearing out?
With the engine off, look for an oil film on the strut body. While driving, a bouncy ride or clunks over bumps can mean suspension wear.
What bushing design does the Monroe 553004 strut use?
The Monroe 553004 has a shouldered bushing and a bonded bushing with sleeve that protect against bushing walkout. Arc welds go up to 360° for durability.
