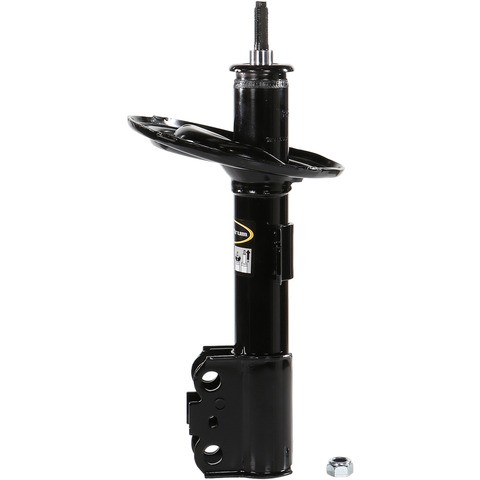

Monroe Shocks & Struts 73013 front right suspension strut for the 2013-2018 Toyota RAV4 damps spring movement over bumps. It is a new, gas-charged unit with a built-in rebound bumper, sold for the front right side only.
- Monroe OESpectrum series strut built for handling precision and control
- Twin Technology active control system for control in most driving conditions and isolation of impact noise and vibration
- Nitrogen gas charge keeps the tire in contact with the road and reduces aeration (most applications)
- Fluon-banded piston seals evenly between the piston and the pressure tube
- Bronze-reinforced rod guide bearing and special single-lip seal (where applicable)
- Protective coating resists rust and corrosion, and salt spray testing backs it up
Quick facts
- Part: Monroe Shocks & Struts 73013 suspension strut
- Fits: 2013-2018 Toyota RAV4
- Position: Front right
- Condition: New
Signs of a worn strut can include a bouncy ride, oily wetness on the body or a clunk over bumps. With the engine off, look the body and rod over for fluid, dents or a bent rod first, since a worn mount or spring can produce similar signs. Front struts are normally replaced as a pair, so plan on the front left as well; this listing is the front right only.
Fits
This suspension strut is a direct-fit replacement for the 2013-2018 Toyota RAV4.
Specifications
Fit and size
- Position: front right
- Quantity per application: 1 for the front right
- Body diameter: 50.9 mm (2.003 in)
- Body length: 12.755 in
- Compressed length: 384.5 mm (15.137 in)
- Extended length: 533.5 mm (21.003 in)
- Travel length: 5.866 in
- Upper mount code: 149
Build and materials
- Type: gas charged, rod extends automatically
- Suspension: passive, not adjustable
- Internal rebound bumper: yes
- Valving: tuned for each vehicle for a consistent, smooth ride (most applications)
- Fluid: all-weather fluid with additives for extreme temperatures
- Condition: New
- Warranty: Monroe limited lifetime warranty and Feel the Difference Guarantee
- Country of origin: China
In the box
One front right suspension strut with mounting hardware. This listing holds one strut, and the front right takes one; the front left is a separate part. The strut mount, coil spring and dust shield are not included.
Interchange: 333524R · 339334 · NS73013 · 930052 · 4851009888 · 4851080598 · 4851080643 · 4851080731 · 4851080794 · 4851080818 · 485108Z276
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
333524R, 339334, 73013, NS73013, 930052, 4851009888, 4851080598, 4851080643, 4851080731, 4851080794, 4851080818, 485108Z276
Frequently Asked Questions
Does Monroe 73013 fit the front right side of the 2013-2018 Toyota RAV4?
Yes. Monroe 73013 is the front right suspension strut for the 2013-2018 Toyota RAV4. The front left side is a separate part.
Does Monroe 73013 come with the coil spring and strut mount?
No. Monroe 73013 comes with mounting hardware, but the strut mount, coil spring and dust shield are not included.
How long is this front right strut when extended and compressed?
This suspension strut measures 533.5 mm (21.003 in) extended and 384.5 mm (15.137 in) compressed, with 5.866 in of travel.
Can a bouncy ride come from a worn front strut?
Yes. A worn strut can let the body bounce or float after bumps, and a clunk over bumps is another sign. Mounts and springs can play a part too, so a shop can pinpoint it.
What warranty comes with Monroe 73013?
Monroe 73013 comes with Monroe's limited lifetime warranty and its Feel the Difference Guarantee.
