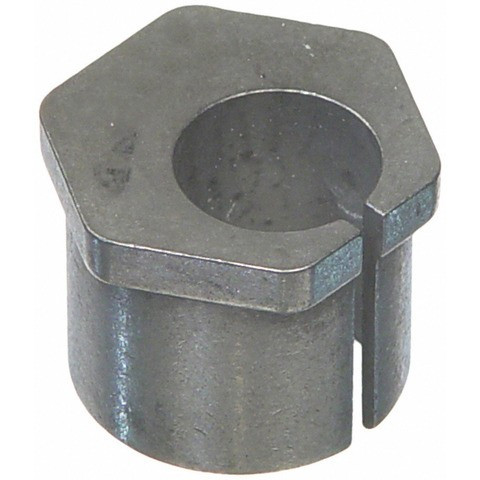

Dial in front-end alignment and correct caster and camber angles with the MOOG Chassis Products Front Alignment Caster / Camber Bushing K8980. This front bushing installs on a wide range of Ford and Mazda trucks, vans and SUVs — including the 1989-1990 Ford Bronco II, 1989-1997 Ford Ranger, 1987-1996 Ford F-150, 1999-2023 Ford F-250 Super Duty, 2000-2005 Ford Excursion, and the 1994-1997 Mazda B2300/B3000/B4000. See the "Vehicles it fits" section for the full application list.
- Wide adjustment range: allows a caster/camber adjustment range from negative 2 1/2 to 2 1/2 degrees, giving room to bring angles back within spec.
- Front position: serves as the front alignment caster / camber bushing for the listed applications.
- MOOG design: the chassis industry's Problem Solver, with design enhancements intended to extend product life and simplify installation and replacement.
Worn or out-of-spec alignment can show up as uneven or accelerated tire wear and a vehicle that pulls or wanders. If a caster/camber adjustment is needed to bring the front alignment back into range, this bushing provides that correction. Always have the alignment set by a technician after installation.
Interchange: 545-144 · 264-1990 · 264-2681 · 42-960 · 611-1120
545144 · 2641990 · 2642681 · 42960 · 6111120 · 45K0120 · VV11216 · AA1990 · MK8980 · 23190 · EX2 · 11216
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
What does the MOOG K8980 bushing do?
It is a front alignment caster / camber bushing used to adjust the front caster and camber angles so the alignment can be brought back within specification.
How much adjustment does it provide?
It allows a caster/camber adjustment range from negative 2 1/2 to 2 1/2 degrees.
Does the K8980 fit my vehicle?
It fits many Ford and Mazda trucks, vans and SUVs, such as the 1989-1997 Ford Ranger, 1987-1996 Ford F-150, 1999-2023 Ford F-250 Super Duty and 1999-2023 Ford F-350 Super Duty. See the "Vehicles it fits" section.
Is this a front or rear part?
It is a front alignment caster / camber bushing for the listed applications.
Do I need an alignment after installing it?
Yes. This bushing is used to set the front caster/camber angles, so have a technician perform a wheel alignment after installation to bring the angles to spec.
