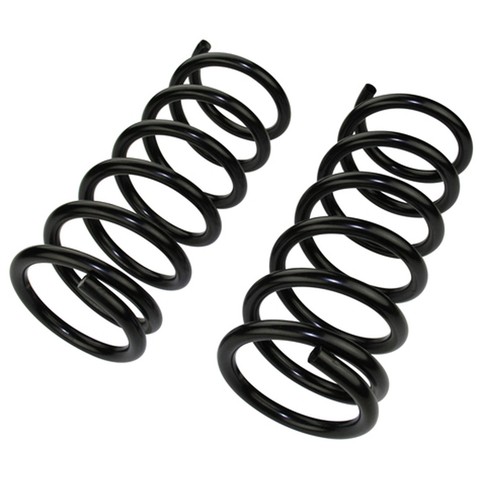

MOOG Chassis Products 81587 rear coil spring set for the 2009-2014 Nissan Maxima and other vehicles supports the rear of the vehicle. The coils compress and rebound as the suspension moves, which absorbs bumps.
- Every spring is 100% load tested
- Easy to install
- Designed to provide like-new steering
- Designed to lower stresses for longer service life
Quick facts
- Part: MOOG Chassis Products 81587 coil spring set
- Fits: 2009-2014 Nissan Maxima and other vehicles
- Position: Rear
- Condition: New
Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment, and a rear end that sits low can be another sign. Before you replace the springs, rule out worn shocks or struts and damaged mounts, since those can also change how the rear rides.
Fits
This set fits the 2009-2014 Nissan Maxima and the 2001-2006 Hyundai Santa Fe.
Specifications
Fit and size
- Position: Rear
- Quantity per application: 1
- Wire diameter: 14.3 mm (0.562 in)
- Outside diameter: 5.144 in
- Relaxed length: 325.4 mm (12.811 in)
- Compressed length: 228.6 mm (9.000 in)
Build and materials
- Condition: New
- Country of origin: United States
In the box
One rear coil spring set. The 2009-2014 Nissan Maxima takes one.
Interchange: 566-293
SMS30026 · 2773761 · 550209N60B · 20999 · 5891230
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
566-293, SMS30026, 2773761, 550209N60B, 20999, 5891230
Frequently Asked Questions
Are these coil springs for the 2009-2014 Nissan Maxima front or rear?
They are rear springs. MOOG Chassis Products 81587 is a rear coil spring set that fits the 2009-2014 Nissan Maxima.
Is this a coil spring for the 2001-2006 Hyundai Santa Fe?
Yes. The MOOG 81587 rear coil spring set is listed for the 2001-2006 Hyundai Santa Fe.
What size is the wire on this rear coil spring set?
The wire diameter is 14.3 mm (0.562 in) and the outside diameter is 5.144 in. Relaxed length is 325.4 mm (12.811 in); compressed length is 228.6 mm (9.000 in).
How can I tell if a rear coil spring is worn?
A rear end that sits low or springs that look sagged can point to wear. Premature tire wear from misalignment is another sign, and a shop can confirm the cause.
Is the MOOG 81587 coil spring set load tested?
Yes. Each spring is 100% load tested, and the design is meant to lower stresses so the spring lasts longer in service.
