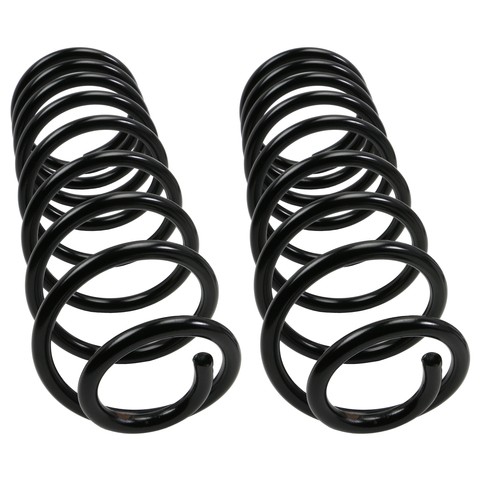

MOOG Chassis Products CC635 rear coil spring set for the 1982-2002 Chevrolet Camaro and other vehicles carries the rear load and absorbs road shocks.
- 100% load tested
- Variable-rate spring with a spring rate of 104 lbs per inch and a load of 518 lbs
- Design changes that simplify installation and replacement
- Designed to lower stresses for longer service life
Quick facts
- Part: MOOG Chassis Products CC635 coil spring set
- Fits: 1982-2002 Chevrolet Camaro and other vehicles
- Position: Rear
- Condition: New
Worn or sagging coil springs can cause premature tire wear from misalignment, and a rear end that sits low can be another sign. Worn rear shocks, tired bushings or a bent suspension arm can be behind these signs too, so find the cause before buying a spring.
Fits
It fits the 1982-2002 Chevrolet Camaro and the 1982-2002 Pontiac Firebird. This listing is one coil spring set; the other side of the rear axle is normally done at the same time.
Specifications
Fit and size
- Position: Rear
- Quantity per application: 1
- Free height: 387.40 mm (15.25 in)
- Installation height: 260.40 mm (10.25 in)
- Inner diameter: 109.20 mm (4.30 in)
- Outside diameter: 5.300 in
- Wire diameter: 12.70 mm (0.50 in)
- Spring rate: 104 lbs per inch
- Load: 518 lbs
Build and materials
- Spring type: Variable rate
- End 1 type: Tangential
- End 2 type: Pigtail
- Condition: New
- Country of origin: United States
In the box
One rear coil spring set. The fitment gives a quantity of 1 for each of these vehicles.
Interchange: 630.62118 · 566-906 · 91-0635 · 277-5186 · 591-1025 · 832-635
45H3025 · RCS635V · DG5911025 · 52041368 · 4414221 · SMS635V · 64059 · U635PV · SP08037 · 110122 · JCS1635T
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
45H3025, 630.62118, 566-906, RCS635V, DG5911025, 52041368, 4414221, 91-0635, SMS635V, 64059, U635PV, 277-5186, SP08037, 591-1025, 110122, 832-635, CC635, JCS1635T
Frequently Asked Questions
Does this Camaro coil spring fit a 1982-2002 Chevrolet Camaro?
Yes. MOOG Chassis Products CC635 is a rear coil spring set listed for the 1982-2002 Chevrolet Camaro, with a quantity of 1 per application.
Are these Pontiac Firebird coil springs right for the 1982-2002 Pontiac Firebird?
Yes. This rear coil spring set is listed for the 1982-2002 Pontiac Firebird as well, with a quantity of 1 per application.
Is the MOOG CC635 a variable rate spring?
Yes. MOOG CC635 is a variable-rate spring with a spring rate of 104 lbs per inch, a free height of 15.25 in and an installation height of 10.25 in.
What can a sagging rear coil spring do to my tires?
Worn or sagging coil springs can cause premature tire wear because of vehicle misalignment. A rear end that sits lower than usual can be another sign.
Is this coil spring set load tested?
Yes. Each spring in this rear coil spring set is 100% load tested, and the design is meant to lower stresses for longer service life.
