Front Coil Spring Set for 1986-1997 Ford Ranger & More - MOOG CC842

$191.99
Sold out
MOOG Chassis Products Coil Spring Set CC842
MOOG Chassis Products Coil Spring Set CC842

Vehicles this part fits
    Part number: CC842
    UPC: 080066163895
    Condition: New
    Weight: 26.90 LBS
    Item Package Quantity: 1
    $191.99

    Out of stock

    Have questions?

    Ask an Expert

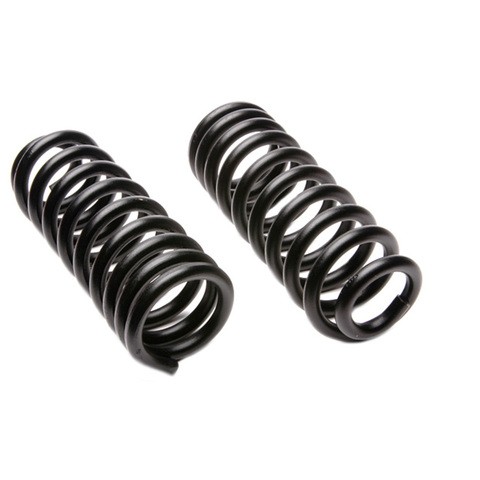

    MOOG Chassis Products Coil Spring Set P/N:CC842
    MOOG Chassis Products Coil Spring Set P/N:CC842
    $191.99
    $191.99

    MOOG Chassis Products CC842 front coil spring set for the 1986-1997 Ford Ranger and other vehicles holds up the front end of the vehicle and absorbs road bumps.

    • Design enhancements that extend product life
    • 100% load tested
    • Easy to install
    • Designed to lower stresses for longer service life
    • Variable-rate spring with a 430 lbs per inch spring rate

    Quick facts

    • Part: MOOG Chassis Products CC842 coil spring set
    • Fits: 1986-1997 Ford Ranger and other vehicles
    • Position: Front
    • Condition: New

    Worn or sagging coil springs can cause premature tire wear from vehicle misalignment. Worn shocks, ball joints or steering parts can be behind uneven tire wear too, so find the cause before buying a spring.

    Fits

    The 1986-1997 Ford Ranger, 1994-1995 Mazda B3000 and 1994-1997 Mazda B2300 take this spring set, and so do other vehicles. If your car is not named here, look it up in the "Vehicles it fits" section to see whether it takes this spring.

    Specifications

    Fit and size

    • Position: Front
    • Quantity per application: 1
    • Inner diameter: 88.90 mm (3.50 in)
    • Outside diameter: 4.840 in
    • Wire diameter: 17.00 mm (0.67 in)
    • Free height: 349.30 mm (13.75 in)
    • Installation height: 266.70 mm (10.50 in)
    • Load: 1447 lbs
    • Spring rate: 430 lbs per inch

    Build and materials

    • Spring type: Variable rate
    • End 1 type: Squared
    • End 2 type: Pigtail
    • Condition: New
    • Country of origin: United States

    Interchange: 630.65055 · 566-137 · 277-5371 · 587-1113 · 832-842
    45H1113 · FCS842V · DG5871113 · 4127608 · SMS842V · U842PV · SP08154 · 110196

    This part cross-references / interchanges with the following part numbers:

    45H1113, 630.65055, 566-137, FCS842V, DG5871113, 4127608, SMS842V, U842PV, 277-5371, SP08154, 587-1113, 110196, 832-842, CC842

    Frequently Asked Questions

    Does the MOOG CC842 work as a Ford Ranger coil spring for a 1986-1997 Ford Ranger?

    Yes. MOOG Chassis Products CC842 is a front coil spring set for the 1986-1997 Ford Ranger, and it fits other vehicles as well.

    What is the spring rate of the CC842 front coil spring?

    MOOG Chassis Products CC842 is a variable-rate spring rated at 430 lbs per inch, with a 349.30 mm (13.75 in) free height and a 266.70 mm (10.50 in) installation height.

    What end types does this front coil spring have?

    This front coil spring has a squared end on one side and a pigtail end on the other.

    How would I know if my front coil spring has sagged below the 349.30 mm free height?

    Premature tire wear can be one sign, and the front end may sit lower than before. A shop can measure the spring against the 349.30 mm free height.

    Is the MOOG CC842 coil spring 100% load tested?

    Yes. Every CC842 spring is 100% load tested and designed to lower stresses for longer service life.
