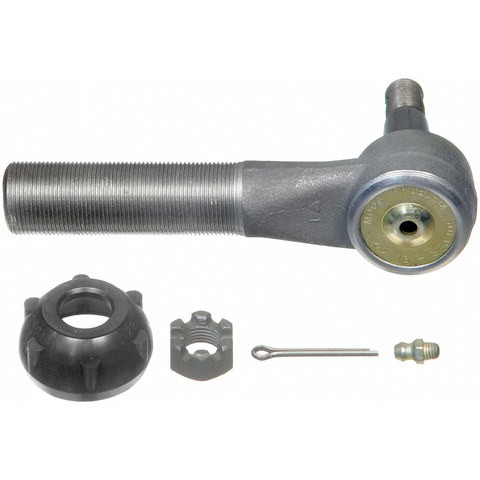

Sharpen up loose, wandering steering with the MOOG ES3009R front steering tie rod end — a Ford F-350 tie rod end that links the steering to the wheel and helps keep your truck tracking straight. It's a direct-fit replacement for the front left position (inner and outer, steering arm to steering arm) on the 1987-1997 Ford F-350. See the Buyer's Guide tab for engine-level details.
- Belleville preload washer: absorbs impact and helps eliminate spring bind and shattering during shock load.
- Problem Solver Gusher Bearing: metal-to-metal design provides strength and lets grease flow through the bearing surface for reduced friction and long life.
- Heat-treated ball studs: heat treated to match or exceed OE requirements to inhibit premature failure and improve fatigue strength.
- Greaseable socket & pressed-in cover plate: allows new lubricant to flush out contaminants while the cover plate seals out debris and minimizes looseness.
MOOG builds this MOOG CHASSIS tie rod end from tested materials with precision tolerances for a straightforward install and easier steering alignment. If a worn tie rod end is behind your play, front-end clunk, or uneven tire wear, this replaces it — diagnose the cause first.
Interchange: 612.61032 · 539-062 · E-6662-TU · E5TZ-3304A · E5TZ-3A131A · E6TZ-3A131A · E7TZ-3304B · F2TZ-3304B · 269-2731 · 401-1425 · 802-2615R
61261032 · 539062 · E6662TU · E5TZ3304A · E5TZ3A131A · E6TZ3A131A · E7TZ3304B · F2TZ3304B · 2692731 · 4011425 · 8022615R · TA2177 · T3009PR · E6662 · T3009 · MES3009R · R230230 · ES2615R · JTE1295
This part cross-references / interchanges with the following part numbers:
612.61032, TA2177, 539-062, T3009PR, ES3009R, E6662, E-6662-TU, E5TZ-3304A, E5TZ-3A131A, E6TZ-3A131A, E7TZ-3304B, F2TZ-3304B, T3009, MES3009R, 269-2731, 401-1425, R230230, 802-2615R, ES2615R, JTE1295
