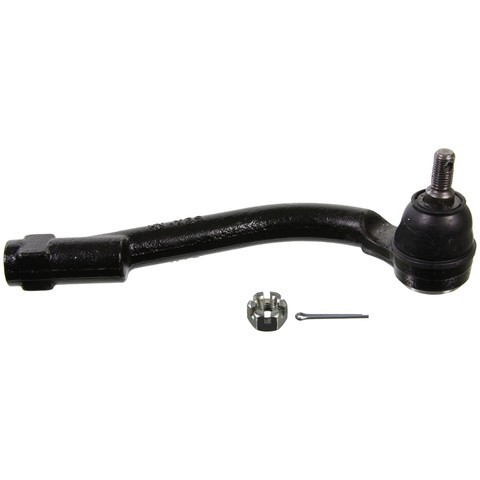

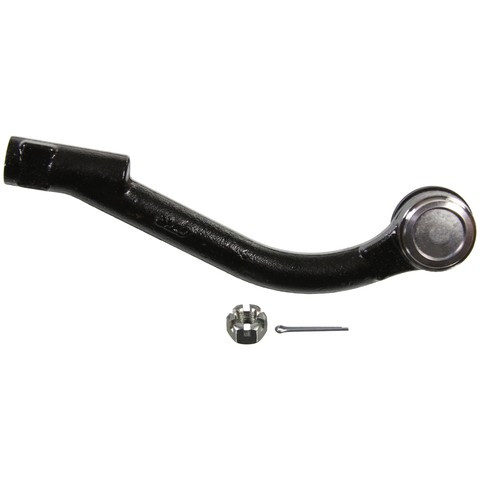

Keep your steering input connected to the road with the MOOG Chassis Products Steering Tie Rod End ES800347, the front right outer tie rod end that links the steering linkage to the steering knuckle and transfers steering-wheel motion to the front wheel. It installs as a direct-fit replacement for the front right outer position on the 2006-2010 KIA Magentis, the 2006-2010 KIA Optima, and the 2007-2012 KIA Rondo.
- Front right outer position: cataloged specifically for the front right outer corner of the steering linkage on the listed applications.
- Steering-to-knuckle link: its ball stud and socket connect the outer linkage to the steering knuckle while allowing the joint to articulate as the suspension and steering move.
- Direct-fit application: designed to replace the original outer tie rod end on the listed Kia applications.
- Sold individually: this listing is for one tie rod end.
Play in the steering wheel, loose or wandering steering, uneven or accelerated tire wear, and clunking or knocking during turns are signs an outer tie rod end MAY need replacing. Because these symptoms can have other causes, diagnose the joint before replacing it, and have the wheel alignment checked and set after installation.
Interchange: 45A1152 · 46A1152A · 101-5399 · 1015399 · 612.50012 · TA3002 · TO63032XL · 544-268 · 544268 · DG4012152 · ER05043 · 568202G900 · TO63031 · TO63032 · ES4371 · GS90607 · MS90607 · MS90705 · 269-3489 · 2693489 · 4012152. Manufacturer part number ES800347.
This part cross-references / interchanges with the following part numbers:
45A1152, 46A1152A, 101-5399, 612.50012, TA3002, TO63032XL, 544-268, DG4012152, ER05043, 568202G900, TO63031, TO63032, ES4371, GS90607, MS90607, MS90705, 269-3489, 4012152, ES800347
