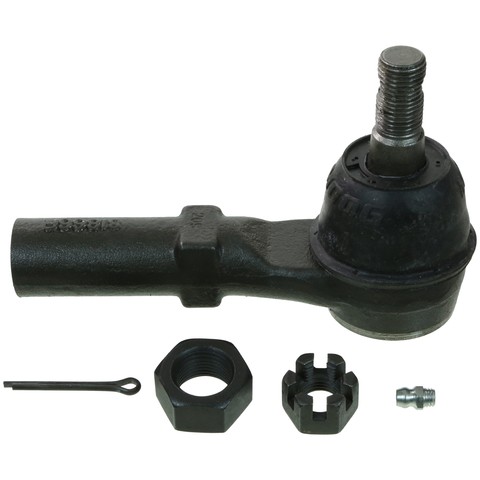

MOOG Chassis Products Steering Tie Rod End P/N:ES800847

Steer with confidence using the MOOG Chassis Products Front Outer Steering Tie Rod End (ES800847), a direct-fit replacement for the 2012 RAM 1500, 2011-2013 RAM 2500, and 2011-2012 RAM 3500 (all engines). The outer tie rod end links the steering linkage to the steering knuckle and transfers steering input to the front wheel; if a worn tie rod end is the cause, signs it may need replacing include loose or wandering steering, uneven tire wear, and a knocking feel during turns.

• Patented pressed-in cover plate: seals out debris and minimizes looseness, helping reduce bearing wear.
• Greaseable socket: lets fresh lubricant flush out contaminants to help reduce corrosion and wear.
• Belleville preload washer: helps keep the bearing package tight as the bearings wear.
• Problem Solver Gusher Bearing: metal-to-metal design lets grease flow through the bearing surface for reduced friction.
• Heat-treated ball stud: built to match or exceed OE requirements for fatigue strength.

This premium, straight-type unit uses a female rod end with an 18.0 mm x 1.5 mm thread at one end and a 14.0 mm x 1.5 mm thread at the other. The listed applications use two (one per side), so replace both sides together as a matched pair for balanced, even steering; sold individually, so order two for a complete pair. Country of origin: Mexico. Manufacturer part number ES800847.
